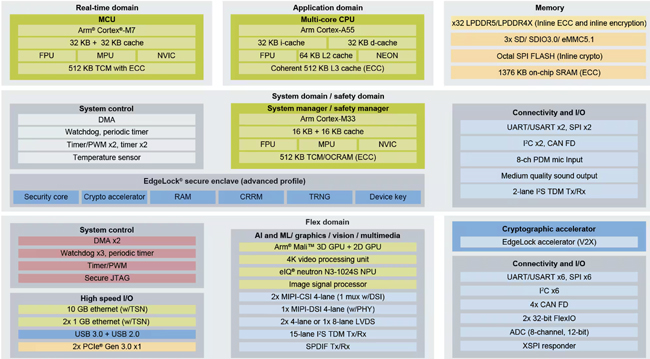

The MYD-JMX95X development board delivers a complete evaluation and prototyping solution for embedded designs based on NXP i.MX95 processor which is built on 16nm FinFET technology and integrates six Cortex-A55 cores, a Cortex-M7 for deterministic real-time control, a Cortex-M33 secure core with EdgeLock Secure Enclave, and a 2 TOPS eIQ Neutron NPU for AI inference, striking an optimal balance between high-performance computing and low-power, functional-safety-ready operation.
The MYD-JMX95X development board consists of the MYC-JMX95X SOM and the MYB-JMX95X base board, connected via a standard SMARC interface. The MYC-JMX95X integrates the i.MX95 processor, LPDDR5 (4GB/8GB), eMMC (32GB/64GB), 32Kbit EEPROM, an onboard Wi-Fi 6 & BT 5.4 module, an independent TPM 2.0 security chip, and a PMIC, forming a complete minimum system. The carrier board offers extensive I/O for application development, including dual Gigabit Ethernet, onboard Wi-Fi 6/BT 5.4, 4G/5G via mini PCIe socket with dual Micro SIM, HDMI/MIPI-DSI display, dual LVDS, MIPI-CSI camera, audio I/O, M.2-2280 PCIe (NVMe SSD), Micro SD, multiple USB (2x USB 3.0 Host, 2x USB 2.0 Host, and 1x USB 2.0 OTG), and dual CAN FD, RS485 & RS232 shared on a single Phoenix connector, delivering a feature-rich platform for industrial, automotive, and edge-AI prototyping.
MYC-JMX95X System-On-Module

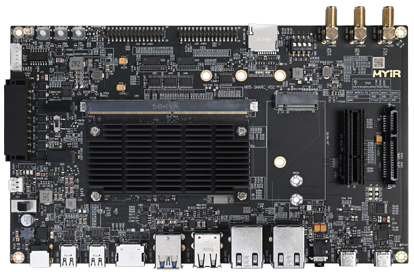

MYD-JMX95X Development Board (delivered with heatsink pre-installed)

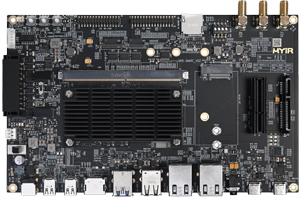

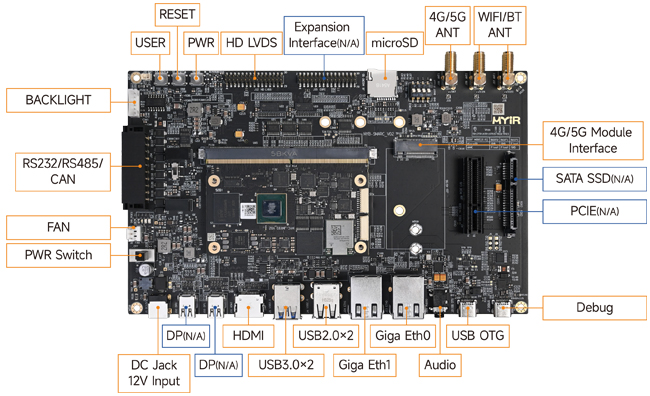

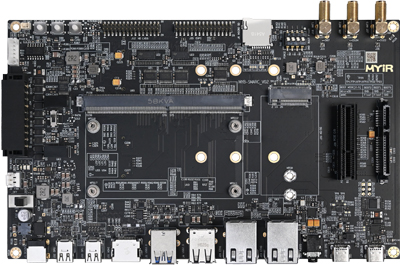

MYD-JMX95X Development Board (Top-view)

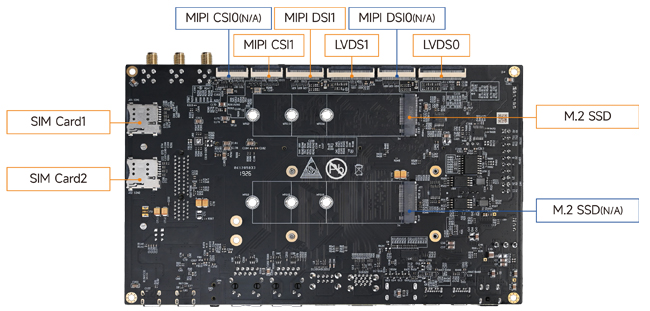

MYD-JMX95X Development Board (Bottom-view)
To accelerate time-to-market, MYIR provides a comprehensive software package, including U-boot, Linux kernel 6.12.49, peripheral drivers, and complete development tools, alongside thorough documentation such as hardware user manual, design guide, base board schematics, and software evaluation guide. With stable reference designs and a ready-to-use software environment, MYIR enables developers to streamline prototyping, reduce development risks, and bring products to market faster.
Features
Mechanical Parameters
-
Dimensions: 206mm x 126mm (base board), 82mm x 50mm (SOM)
-
PCB Layers: 6-layer design (base board), 12-layer design (SOM)
-
Power supply: +12V/2A (base board), 5V/2A (SOM)
-
Working temperature: -40~85 Celsius (industrial grade)
(WiFi Module: -20~70 Celsius)

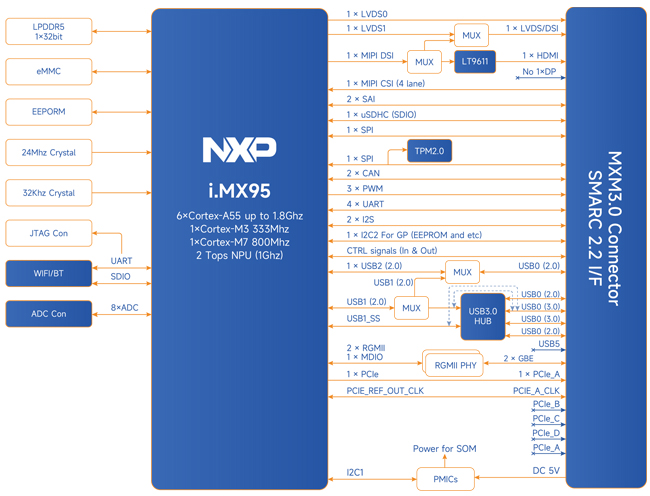

The MYD-JMX95X Controller Board (MYC-JMX95X)

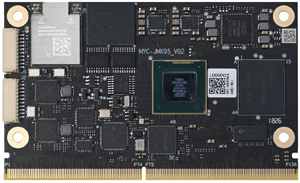

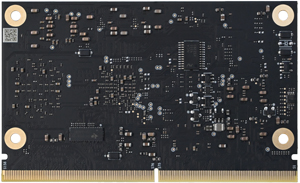

MYC-JMX95X System-On-Module (Top-view and Bottom-view)
Processor
-
NXP i.MX 95 processor (MIMX9596XVTXNAC)
- Hexa-core 64-bit Arm Cortex-A55 microprocessor subsystem up to 1.8 GHz
- Cortex-M7 real-time core (up to 800 MHz)
- Cortex-M33 system-management core (up to 333 MHz)
- Integrated 2 TOPS eIQ Neutron NPU (INT8 @ 1 GHz)
- Arm Mali-G310 3D GPU
Memory
-
4GB/8GB LPDDR5 (single-chip)
-
32GB/64GB eMMC
-
32Kbit EEPROM
Peripherals and Signals Routed to Pins
-
Power Management IC (PCA9451AHNY)
-
Power Management IC (PCA9451AHNY)
-
Onboard WiFi 6 + Bluetooth 5.4 Module
-
Independent TPM 2.0 security chip
-
314-pin SMARC Expansion Connector
- 2x RGMII
- 1x PCIe Gen3 (1-lane)
- 1x USB 2.0 OTG
- 2x USB 3.0 Host
- 2x USB 2.0 (via HUB)
- 2x CAN FD (up to 5 Mbps)
- 4x UART
- 2x SPI
- 2x SAI (I2S/PCM/TDM compatible)
- 1x SD/SDIO 3.0
- 3x I2C, PWM, and control signals
- 1x MIPI-DSI /1x HDMI (transferred via MIPI-DSI)
- 2x LVDS
- 1x MIPI-CSI
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet.

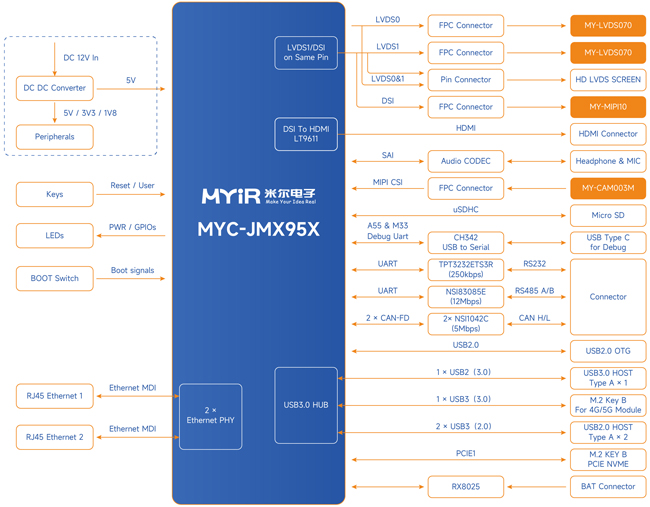

The MYD-JMX95X Development Board Base Board
-
1x Power Jack ·
-
1x Power Switch
-
Serial Ports
- 1x RS232 (Isolated)
- 1x RS485 (Isolated)
- 1x Debug Interface (USB Type-C)
-
USB
- 2x USB3.0 Host ports
- 2x USB2.0 Host ports
- 1x USB2.0 OTG port
- 1x M.2 socket for USB based 4G/5G LTE Module
-
2x SIM card slots
-
2x 10/100/1000Mbps Ethernet interfaces
-
2x external antenna connectors (one for WiFi and one 4G/5G)
-
2x CAN FD interfaces (Isolated)
-
1x Micro SD card slot
-
2x LVDS interfaces
-
1x MIPI-DSI/HDMI display interface
-
1x MIPI-CSI Camera Interface
-
1x Audio Input and Output Interface
-
3x Buttons (one for Reset, one for User, one for ON/OFF)
-
3x LEDs (one for Power indicator, one for System status indicator, one for User LED)
