          Products >  System-On-Modules (SOMs) >  MYC-JX8MPQ (NXP i.MX 8M Plus) > MYC-JX8MPQ

MYC-JX8MPQ

MYC-JX8MPQ

- NXP i.MX 8M Plus Quad Application Processor based on 1.6 GHz Arm Cortex-A53 and 800MHz Cortex-M7 Cores
- A Neural Processing Unit (NPU) Operating at up to 2.3 TOPS
- 2GB/3GB/4GB LPDDR4, 8GB eMMC Flash, 32MB QSPI Flash
- Power Management IC (PMIC)
- 0.5mm pitch 314-pin MXM 3.0 Gold-finger-edge-card Connector
- Supports Working Temperature Ranging from -40°C to 85°C
- Supports Running Linux L5.10.9


MYIR is a Gold Partner of NXP, welcome to use MYIR's NXP series products!
We also offer ODM and OEM services, welcome your inquiry!
https://www.myirtech.com/nxpseries.asp


Measuring 45mm by 82mm, the
MYC-JX8MPQ is a high-performance embedded ARM SoM based on NXP's powerful quad Arm Cortex-A53 i.MX 8M Plus processor with 800MHz ARM Cortex-M7 Real-time co-processor. The i.MX processor features an integrated Neural Processing Unit (NPU) operating at up to 2.3 TOPS, combining advanced 14LPC FinFET process technology to provide more possibility and reliability in machine learning and vision, Artificial Intelligence (AI), advanced multimedia and industrial automation fields. It has 2GB/3GB/4GB LPDDR4, 8GB eMMC and 32MB QSPI flash default memory and storage configuration as well as PMIC. A number of peripheral and IO signals are access through one 0.5mm pitch 314-pin MXM 3.0 gold-finger-edge-card connector. It is capable of running Linux OS and provided with plenty of software resources.

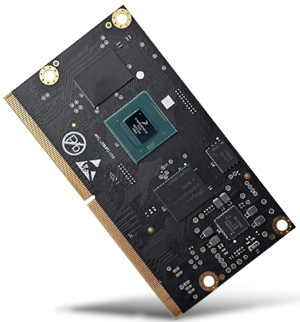

MYC-JX8MPQ CPU Module


MYIR offers
MYD-JX8MPQ Development Board for evaluating the MYC-JX8MPQ CPU Module, the base board has taken great computing and multimedia capabilities of the i.MX 8M Plus processor to provide 2 x MIPI-CSI (4-lane) Camera Interfaces, 1 x LVDS (dual-channel)/2 x LVDS (single-channel) /1 x MIPI-DSI (4-lane), up to 800Mhz HiFi4 Audio DSP and HDMI with up to 4k resolution. It also has strong communication connectivity with 1 x Debug serial port, 1 x USB 3.0 OTG, 1 x USB 3.0 HOST, 2 x Gigabit Ethernet, 2 x CAN, 2 x M.2 Sockets (one for 5G LTE Module and one for PCIe SSD), 1 x 10-pin extension header for WiFi/Bluetooth module and one 2 x 20-pin UART/I2C/SPI/GPIO extension header which is compatible with Raspberry Pi interface, Micro SD card slot, etc. The board has full version and lite version. The lite version (-L) doesnt support CAN and PCIe SSD. MYIR can also offer design services to help customize the base board according to customers’ requirements.


MYD-JX8MPQ Development Board Top-view (delivered with installed heatsink by default)



MYD-JX8MPQ Development Board Bottom-view

Features

Mechanical Parameters

  • Dimensions: 45mm x 82mm
  • PCB Layers: 8-layer design
  • Power supply: +5V/1.1A (max)
  • Working temperature: 0~70 Celsius (commercial grade) or 40~85 Celsius (industrial grade)

Processor

NXP i.MX 8M Plus Quad Processor

- 1.6 GHz Quad-core ARM Cortex-A53 CPU (MIMX8ML8CVNKZAB, industrial grade)

- 800MHz Real-time ARM Cortex-M7 co-processor

- Integrated 2.3 TOPS Neural Processing Unit (NPU)

- Integrated 2D/3D GPU and 1080p VPU


Memory

  • 2GB/3GB/4GB LPDDR4 (supports up to 6GB)
  • 8GB eMMC Flash (supports up to 128GB)
  • 32MB QSPI Flash

Peripherals and Signals Routed to Pins

  • Power Management IC
  • 0.5mm pitch 314-pin MXM 3.0 Gold-finger-edge-card Connector
    - 2 x 10/100/1000Mbps Ethernet
    - 1 x MIPI DSI
    - 2 x MIPI CSI
    - 4 x UART
    - 2 x USB 3.0
    - 6 x I2C
    - 3 x SPI
    - 2 x LVDS
    - 1 x HDMI
    - 1 x HiFi4 Audio DSP
    - 1 x PCIE3.0
    - 2 x CAN
    - 2 x uSDHC (uSDHC1: 8bit width, uSDHC2: 4bit width)
    Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet.

OS Support

  • Linux L5.10.9


Other MYIR's NXP Products

http://www.myirtech.com/nxpseries.asp

MYD-J1028X Development Board (MYC-J1028X CPU Module as core board, NXP LS1028A)

MYD-JX8MX Development Board (MYC-JX8MX CPU Module as core board, NXP i.MX 8M)

MYD-C8MMX-V2 Development Board (MYC-C8MMX-V2 CPU Module as core board, NXP i.MX 8M Mini)

MYD-JX8MMA7 Development Board (MYC-JX8MMA7 CPU Module as core board, NXP i.MX 8M Mini + Artix-7 FPGA)

MYD-Y6ULX-V2 Development Board (MYC-Y6ULX-V2 CPU Module as core board, NXP i.MX 6UL/6ULL)

MYS-8MMX-V2 Single Board Computer (NXP i.MX 8M Mini)

MYS-6ULX Single Board Computer (NXP i.MX 6UL/6ULL)





Hardware Specification

The MYC-JX8MPQCPU Module is using NXP’s 15 x 15 mm, 0.5 mm pitch, FCBGA bare die package i.MX 8M Plus Quad Application Processor (MIMX8ML8CVNKZAB) which is among the i.MX 8M Plus family and features as in below tables.

Family

Part Number

Configuration

Temperature

i.MX 8M Plus Quad

MIMX8ML8DVNLZAB

4x A53 (1.8Ghz), VPU, NPU, ISP

0℃ - +95℃

i.MX 8M Plus Quad

MIMX8ML6DVNLZAB

4x A53 (1.8Ghz), VPU, ISP

0℃ - +95℃

i.MX 8M Plus Quad Lite

MIMX8ML4DVNLZAB

4x A53 (1.8Ghz)

0℃ - +95℃

i.MX 8M Plus Dual

MIMX8ML3DVNLZAB

2x A53 (1.8Ghz), VPU, NPU, ISP

0℃ - +95℃

i.MX 8M Plus Quad

MIMX8ML8CVNKZAB

4x A53 (1.6Ghz), VPU, NPU, ISP, CAN-FD

-40 - +105

i.MX 8M Plus Quad

MIMX8ML6CVNKZAB

4x A53 (1.6Ghz), VPU, ISP, CAN-FD

-40℃ - +105

i.MX 8M Plus Quad Lite

MIMX8ML4CVNKZAB

4x A53 (1.6Ghz), CAN-FD

-40℃ - +105

i.MX 8M Plus Dual

MIMX8ML3CVNKZAB

2x A53 (1.6Ghz), VPU, NPU, ISP, CAN-FD

-40℃ - +105


i.MX 8M Plus Family Application Processors

- ARM Cortex-A53, frequency up to 1.8Ghz; 800Mhz ARM Cortex-M7

- 16/32-bit DRAM interface, support LPDDR4-4000, DDR4-3200, DDR3L-1600

- x1, 8-bit NAND Flash

- x2, eMMC 5.1 Flash

- x3, SPI NOR FLASH

- x1, PCIe Gen3

- x2 USB 3.0 Type C controllers with integrated PHY (also supported USB 2.0) interfaces

- x3 uSDHC interface with eMMC 5.1 compliance

- x2 Gigabit Ethernet controller

- x4 UART, x6 I2C, x3 SPI

- Video Processing Unit

1080p60 HEVC/H.265 Main, Main 10 (up to level 5.1)

1080p60 VP9 Profile0,2

1080p60 AVC/H.264 Baseline, Main, High decoder

1080p60 AVC/H.264 encoder

1080p60 HEVC/H.265 encoder

- Graphic Processing Unit

GC7000UL with OpenCL and Vulkan support

166 million triangles/sec

Supports OpenGL ES 1.1, 2.0, 3.0, OpenCL 1.2, Vulkan

GC520L for 2D acceleration

- LCDIF Display Controller

Support up to 1080p60 display per LCDIF if no more than 2 instances used simultaneously,

or 1x 1080p60 + 2x 720p60 if all 3 instances used simultaneously.

One LCDIF drives MIPI DSI

One LCDIF drives LVDS Tx

One LCDIF drives HDMI Tx

- MIPI Interface

4-lane MIPI DSI interface

Two instances of 4-lane MIPI CSI interface and HDR ISP

- Audio

HiFi4 Audio DSP, SPDIF input and outputx6 SAI

- FCBGA, 0.5mm pitch, 15x15mm

Features of i.MX 8M Plus Application Processor


i.MX 8M Plus System Block Diagram


MYC-JX8MPQ CPU Module Function Block Diagram

Software Features

MYIR's MYC-JX8MPQ CPU module is ready to run Linux which is provided with software package. Many peripheral drivers are in source code to help accelerate customer’s designs. The software package provided is characterized as following:

Item

Features

Description

Source Code Provided

Bootstrap program

u-boot

The primary bootstrap based on U-boot 2020.04

YES

Linux kernel


Based on Linux L5.10.9

YES

Drivers

PMIC

pca9450 PMIC driver

YES

USB Host

USB Host driver

YES

USB OTG

USB OTG driver

YES

I2C

I2C Bus driver

YES

SPI

SPI Bus driver

YES

Ethernet

10/100/100M Ethernet driver

YES

MMC

MMC/eMMC/TF card driver

YES

PWM

PWM driver

YES

RTC

RTC driver

YES

IO

GPIO driver

YES

Touch

Capacitive touch screen driver

YES

Audio

WM8960 driver

YES

Camera

OV5640 driver

YES

WIFI/BT

AP6212 driver

YES

Watchdog

Watchdog driver

YES

5G LTE MODULE

EC20/RM500-Q

YES

M.2

NVME driver

YES

File System

Yocto rootfs

Yocto 3.2.1 include QT5.15.0, armnn, tensorflow-lite

YES

Application Programs

GPIO KEY

KEY example

YES

NET

TCP/IP socket C/S example

YES

RTC

RTC example

YES

UART

UART example

YES

Audio

Audio example

YES

Camera

Camera display example

YES

Compiler Tool Chain

Cross compiler

Yocto GCC 7.5.0

YES






































Linux Software Features


Relative Download and Links

You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.


1 MYC-JX8MPQ CPU Module Overview 906 KB
2 i.MX 8M Plus Applications Processor Datasheet for Industrial Products 1.40 MB
3 i.MX 8M Plus Applications Processor Datasheet for Consumer Products 1.40 MB

4 MYD-JX8MPQ Development Board Overview
1.54 MB
5 CE Certification of MYC-JX8MPQ CPU Module 251 KB
6 3D STEP file of MYC-JX8MPQ CPU Module
3.59 MB


MYC-JX8MPQ CPU Module Top-view


MYC-JX8MPQ CPU Module Bottom-view


MYD-JX8MPQ Development Board






Price and Ordering

Item

Part No.

Packing List

Unit Price

Ordering

MYC-JX8MPQ
CPU Module

MYC-JX8MPQ-8E3D-160-C

- One MYC-JX8MPQ CPU Module

USD99

MYC-JX8MPQ-8E2D-160-I
USD99

MYC-JX8MPQ-8E4D-160-I
USD115

MYD-JX8MPQ
Development Board


MYD-JX8MPQ-8E3D-160-C

- One MYD-JX8MPQ board
(including one MYC-JX8MPQ
with installed heatsink
mounted on base board )
The -L version is without SSD and CAN.

- One 12V/2A Power adapter

- One USB TYPE-A to TYPE-C cable

- One Power transfer cable

- One Quick Start Guide

USD215

MYD-JX8MPQ-8E2D-160-I USD219

MYD-JX8MPQ-8E4D-160-I
USD229

MYD-JX8MPQ-8E3D-160-C-L
USD200

LCD Module

MY-LVDS070C
7-inch LCD Module

with capacitive touch screen

USD99

MY-CAM003M
Camera Module

MY-CAM003M
MIPI Camera Module
USD25

MY-WF005S
WiFi/BT Module

MY-WF005S
WiFi/Bluetooth Module USD18

Note:

1. One MYD-JX8MPQ Development Board includes one CPU module MYC-JX8MPQ mounted on the base board. If you need more CPU module, you can order extra ones.

2. Discount is available for mass orders. Please contact MYIR for inquiries.

3. We accept custom design based on the MYD-JX8MPQ, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
