          Products >  CPU Modules >  MYC-YA157C (ST STM32MP157A) > MYC-YA157C CPU Module

MYC-YA157C CPU Module

MYC-YA157C CPU Module

- ST STM32MP1 MPU based on 650MHz Dual Arm Cortex-A7 and 209MHz Cortex-M4 Cores
- 512MB DDR3, 4GB eMMC Flash
- On-board Gigabit Ethernet PHY
- 1.0mm pitch 164-pin Stamp Hole Expansion Interface
- Supports Running Linux OS


MYIR is an ST Authorized Partner, welcome to use MYIR's ST series products!
We also offer custom design services, welcome your inquiry!

https://www.st.com/content/st_com/en/partner/partner-program/partnerpage/myir.html


Measuring only 45mm by 43mm, the MYC-YA157C CPU Module is a compact ST STM32MP1 powered System-on Module (SoM) that combines the STM32MP157 processor (STM32MP157AAC3), 512MB DDR3, 4GB eMMC as well as an integrated GigE PHY chip. A number of peripherals and IO signals are brought out through 1.0 mm pitch 164-pin stamp-hole (Castellated-Hole) expansion interface to make the module an excellent embedded controller for your system integration. Typical applications are industrial control, consumer electronics, smart home, medical and more other energy-efficient applications which require rich performance and low power.

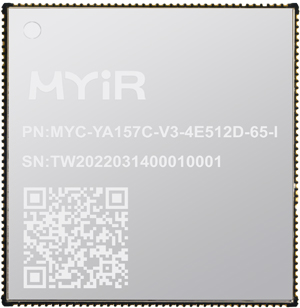

MYC-YA157C CPU Module (delivered with shielding cover by default)


The MYC-YA157C is running Linux OS. Based on Linux 5.4.31 kernel, MYIR provides abundant software resources for Yocto 3.1 based MYIR MEasy-HMI system, Yocto 2.6 based ST Weston system, Yocto 3.1 based MYIR MEasy-IOT system and Ubuntu 18.04 system including kernel and driver source code, STM32CubeProgrammer and STM32CubeMX tools to enable users to start their development rapidly and easily.


The MYD-YA157C development board is built around the MYC-YA157C CPU Module. It takes full advantages of the STM32MP157A MPU to explore a rich set of peripherals and interfaces to the base board including RS232, RS485, USB Type-C DRP, USB2.0 HOST, Gigabit Ethernet, WiFi/Bluetooth, CAN, Micro SD Card Slot, JTAG, RGB888 based LCD/HDMI, MIPI-DSI, etc. The MYD-YA157C development board is delivered with one Quick Start Guide, one Type-C cable, one USB to TTL serial cable and one WiFi/Bluetooth antenna to provide user a complete platform for evaluating and prototyping based on STM32MP1 series microprocessors. MYIR also offers MY-TFT070CV2 LCD Module as an option for the board.

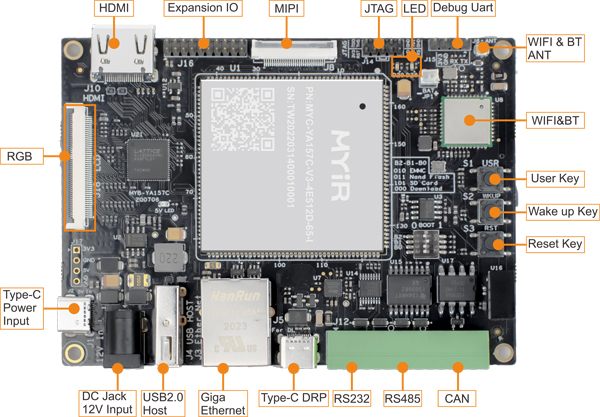

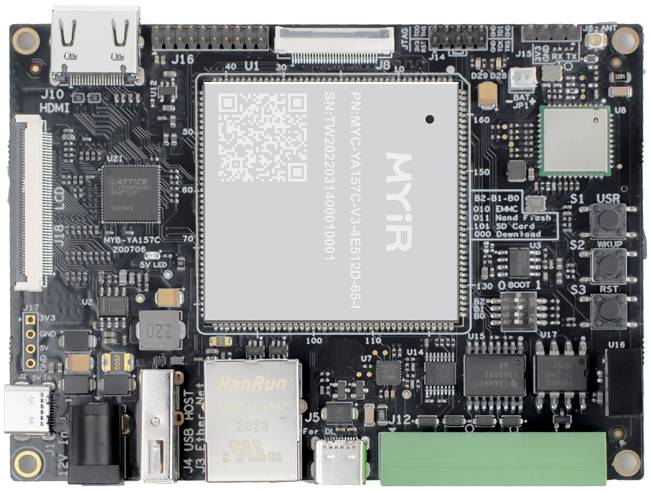

MYD-YA157C Development Board Top-view



MYD-YA157C Development Board Bottom-view

MYD-YA157C in the Video

- MEasy HMI QT DEMO on STM32MP1 based MYD-YA157C Dev Board with Touch Screen

- ECG DEMO on STM32MP1 based MYD-YA157C Dev Board with LCD & Mouse


Features

Mechanical Parameters

  • Dimensions: 45mm x 43mm
  • PCB Layers: 8-layer design
  • Power supply: 5V/0.5A
  • Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)

Processor

  • STMicroelectronics STM32MP157AAC3 Microprocessor
    - Up to 650MHz dual-core Arm Cortex-A7 32-bit RISC core
    - Up to 209MHz Arm Cortex-M4 32-bit RISC core with FPU/MPU
    - Integrated 3D GPU

Memory

  • 512MB DDR3 (supports up to 1GB DDR3)
  • 4GB eMMC Flash (supports up to 64GB eMMC)
  • Nand Flash (alternative design with eMMC, supporting 256MB / 512MB /1GB Nand Flash)

Peripherals and Signals Routed to Pins

  • One 10/100/1000M Ethernet PHY
  • 1.0mm pitch 164-pin stamp hole expansion interface
    - 8 x Serial ports
    - 6 x I2C
    - 6 x SPI
    - 1 x SAI
    - 1 x USB 2.0 Host and 1 x USB 2.0 OTG
    - 2 x SDIO
    - 2 x CAN
    - 1 x MIPI-DSI
    - 1 x
    Digital Camera Interface (DCMI)
    1 x RGB Interface (supports RGB888, resolution up to 1366 x 768 @60fps)
    - Up to 97 x GPIOs

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.

OS Support

  • Linux 5.4.31


Other MYIR's ST Products

http://www.myirtech.com/stseries.asp

MYD-YA15XC-T Development Board (MYC-YA15XC-T CPU Module as core board)






Hardware Specification

The MYC-YA157C CPU Module is using STMicroelectronics STM32MP157AAC3 Microprocessor with 12 x 12 mm, 0.5 mm pitch, TFBGA361 package which is among the STM32MP1 Series. The STM32MP1 series is based on a heterogeneous single or dual Arm Cortex-A7 and Cortex-M4 cores architecture, strengthening its ability to support multiple and flexible applications, achieving the best performance and power figures at any time. The Cortex-A7 core provides access to open-source operating systems (Linux/Android) while the Cortex-M4 core leverages the STM32 MCU ecosystem. It is available in 3 different lines which are pin-to-pin compatible:

  • STM32MP157: Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz, 3D GPU, DSI display interface and CAN FD
  • STM32MP153: Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz and CAN FD
  • STM32MP151: Single Cortex-A7 core @ 650 MHz, Cortex-M4 core @ 209 MHz
    Each line comes with a security option (cryptography & secure boot)


STM32MP1 Series Processsors



STM32MP157 Block Diagram

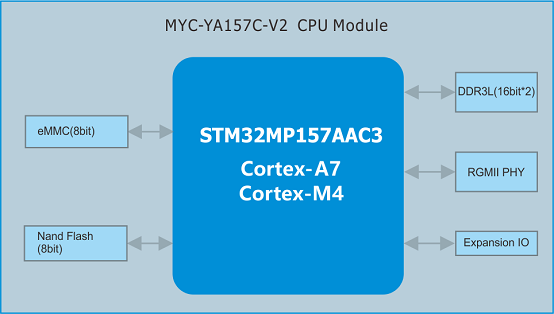

MYC-YA157C CPU Module Function Block Diagram


MYC-YA157C CPU Module Dimension Chart




Software Features

The MYD-YA157C runs Linux OS and is provided with software packages. Based on Linux 5.4.31 kernel, MYIR has provided abundant software resources for Yocto 3.1 based MYIR MEasy-HMI system, Yocto 3.1 based ST Weston system, Yocto 3.1 based MYIR MEasy-IOT system and Ubuntu 18.04 system including kernel and driver source code, STM32CubeProgrammer and STM32CubeMX tools to enable users to start their development rapidly and easily.


Item

Features

Description

Source Code

Bootstrap program

TF-A-2.2

Arm Trusted Firmware

YES

Bootloader

U-boot-2020.01

Kernel bootstrap

YES

Linux kernel

Linux-5.4.31

Customized based on ST kernel_5.4.31 version for MYD-YA157C

YES

Drivers

Nand Flash

Nand Flash driver

YES

PMIC

STPMIC driver

YES

USB Host

USB Host driver

YES

USB OTG

USB OTG driver

YES

I2C

I2C driver

YES

SPI

SPI driver

YES

Ethernet

10M/100M/1000M Ethernet driver

YES

MMC

eMMC/TF card driver

YES

LCD

LCD driver, supports MYIR’s 7-inch LCD with 800 x 480 pixels resolution

YES

HDMI

HDMI driver

YES

Touch

Capacitive touch screen driver

YES

PWM

PWM driver

YES

RTC

RTC driver

YES

GPIO

GPIO driver

YES

UART/USART

Serial port driver

YES

CAN

FDCAN Bus driver

YES

RS485

RS485 driver

YES

Camera

USB Camera driver (OV2659)

YES

WiFi & BT

AP6212 WiFi/BT driver (SDIO)

YES

Watchdog

Watchdog driver

YES

File system

rootfs

Yocto 3.1 for ST Weston system

YES

rootfs

Yocto 3.1 for QT5.12 system (available later)

YES

rootfs

MEasy_IOT 1.0 & MEasy_HMI 2.0 demo system developed by MYIR

YES

Ubuntu core system

Based on ubuntu 18.04

YES

Tools

STM32CubeProgrammer

ST programmer software

BIN

STM32CubeMX

ST configuration integration tool

BIN

Applications

GPIO LED

LED example

YES

GPIO KEY

KEY example

YES

NET

TCP/IP Socket C/S example

YES

RTC

RTC example

YES

RS232

RS232 example

YES

RS485

RS485 example

YES

CAN

CAN example

YES

LCD

LCD Display example

YES

Camera

Camera Display example

YES

UART

UART example

YES

Compiler Tool Chain

Cross compiler

arm-openstlinux_weston-linux-gnueabi

BINARY























































MYD-YA157C Software Features



MEasy-HMI System Structure



MEasy-IOT System Structure






Relative Download and Links

You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.


1 MYC-YA157C CPU Module Overview 1.70 MB
2 ST STM32MP157A Datasheet 3.32 MB
3 MYC-YA157C Pinouts Description 43 KB
4 MYD-YA157C Development Board Overview
1.88 MB
5 CE Certification of MYC-YA157C CPU Module 316 KB
6 3D STEP file of MYC-YA157C CPU Module
1.95 MB


MYC-YA157C CPU Module


MYD-YA157C Development Board







Price and Ordering

Item

Part No.

Packing List

Unit Price

Ordering

MYC-YA157C
CPU Module
MYC-YA157C-V3-4E512D-65-C
- One MYC-YA157C CPU Module
USD35

MYC-YA157C-V3-4E512D-65-I
- One MYC-YA157C CPU Module
USD39

MYD-YA157C

Development Board

MYD-YA157C-V3-4E512D-65-C

- One MYD-YA157C board

- One USB Type-C cable

- One USB-to-UART cable

- One WiFi/Bluetooth antenna

- One Quick Start Guide

USD89
MYD-YA157C-V3-4E512D-65-I
USD99

MY-CAM002U

Camera Module

MY-CAM002U
USB Camera Module
USD19

MY-TFT070CV2
7-inch LCD Module

with capacitive touch screen

USD89

Note:

1. One MYD-YA157C Development Board includes one CPU module MYC-YA157C mounted on the base board. If you need more CPU module, you can order extra ones.

2. Discount is available for mass orders. Please contact MYIR for inquiries.

3. We accept custom design based on the MYD-YA157C, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
