Products > Development Boards > MYD-CZU3EG/4EV/5EV-V2 (Xilinx) > MYD-CZU3EG/4EV/5EV-V2 Development Board |
| |
 |
MYD-CZU3EG/4EV/5EV-V2 Development Board |
- MYC-CZU3EG/4EV/5EV-V2 CPU Module as Controller Board
- Xilinx Zynq UltraScale+ ZU3EG /ZU4EV /ZU5EV MPSoC based on 1.2 GHz Quad Arm Cortex-A53 and 600MHz Dual Cortex-R5 Cores
- 4GB DDR4 SDRAM (64 bit, 2400MHz)
- 4GB eMMC Flash, 128MB QSPI Flash
- USB 3.0, Gigabit Ethernet, CAN, TF, DP, PCIe, SATA, HDMI, LCD
- PMoD, FMC, SFP+ (for EV MPSoCs), ARDUINO User Interface
- Optional 7-inch LCD Modules and USB Camera and WiFi Modules
- Ready-to-Run PetaLinux 2020.1
- Supports Xilinx Vitis Software Development Platform
|
|
|
|
| |
|
MYIR is a Xilinx Alliance Member, welcome to use MYIR's Xilinx products!
We also offer ODM & OEM services, welcome your inquiry!
http://www.myirtech.com/xilinxseries.asp
The MYD-CZU3EG/4EV/5EV-V2 development board consists of the MYC-CZU3EG/4EV/5EV-V2 CPU Module and a specially designed base board to provide a complete and versatile platform for evaluating and prototyping based on Xilinx Zynq UltraScale+ MPSoC devices. MYIR supplies the development board and CPU Module with ZU3EG, ZU4EV and ZU5EV variants.
The MYC-CZU3EG/4EV/5EV-V2 CPU Module is an Arm SOM with integrated XCZU3EG-1SFVC784 / XCZU4EV-1SFVC784 / XCZU5EV-2SFVC784 MPSoC, 4GB DDR4, 4GB eMMC, 128MB QSPI Flash, Ethernet PHY, USB PHY and Intel Power Module. It is mounted on the MYD-CZU3EG/4EV/5EV-V2 base board through two 0.5mm pitch 160-pin Razor Beam High-Speed Sockets.
The MYD-CZU3EG/4EV/5EV-V2 Zynq UltraScale+ MPSoC development board has extended a rich peripheral set and interfaces on the base board through connectors and headers including USB 3.0, Gigabit Ethernet, CAN, TF, DisplayPort (DP), PCIe interface, SATA interface, JTAG, HDMI, LCD interface, ARDUINO User Interface, PMoD, FMC, and four SFP+ interfaces (for EV MPSoCs only).
The MYD-CZU3EG/4EV/5EV-V2 is capable of running PetaLinux and comes with necessary cable accessories as well as detailed documentations and software package. It can support Xilinx Vitis Software development platform. Typical applications are the Internet, cloud computing, Data center, Machine Vision, Military facilities, Flight navigation and other embedded applications.

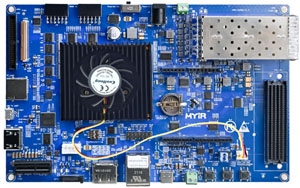

MYD-CZU3EG/4EV/5EV-V2 Development Board
(delivered with installed active heatsink on MYC-CZU3EG/4EV/5EV-V2 CPU Module by default)
MYC-CZU3EG/4EV/5EV-V2 CPU Module (Top-view)
MYC-CZU3EG/4EV/5EV-V2 CPU Module (Bottom-view)
Features
Mechanical Parameters
-
Dimensions: 60.00mm x 52.00mm (CPU Module), 195.33mm x 123.95mm (base board)
-
PCB Layers: 12-layer design (CPU Module), 6-layer design (base board)
-
Power supply: 3.3V (CPU Module), 12V (base board)
-
Working temp.: 0~70 Celsius (commercial grade)
The MYD-CZU3EG/4EV/5EV-V2 Controller Board (MYC-CZU3EG/4EV/5EV-V2 CPU Module)
MPSoC
-
Xilinx Zynq UltraScale+ XCZU3EG-1SFVC784 / XCZU4EV-1SFVC784 / XCZU5EV-2SFVC784 MPSoC
- 1.2GHz 64 bit Quad-core ARM® Cortex™-A53
- 600MHz Dual-core ARM® Cortex™-R5 processor
- ARM Mali™-400MP2 Graphics Processor
- 16nm FinFET+ FPGA fabric
Memory
-
4GB DDR4 SDRAM (64bit, 2400MHz)
-
4GB eMMC Flash
-
128MB QSPI Flash
Peripherals and Signals Routed to Pins
-
Gigabit Ethernet PHY
-
USB PHY
-
Power Module
-
Clock Generator
-
Watchdog
-
Four LEDs
- One yellow LED for ERROR_STATUS indicator (indicate a secure lockdown state)
- One yellow LED for ERROR_OUT indicator (Asserted for accidental power loss, hardware error)
- One green LED for PS_Done indicator (indicate the pl configuration is done)
- One green LED for PS_INIT indicator (indicate the ps is initialized after a power-on reset)
-
Two Samtec 0.5mm pitch 160-pin Razor Beam High-Speed socket bring out
- 4 PS GTR transceivers along with 2 GTR reference clock inputs
- PS JTAG interface, USB 2.0 interface, Gigabit Ethernet interface and etc.
- 4 PL GTH transceivers along with 1 GTH reference clock inputs (only for Zynq UltraScale+ EV Devices)
- 156 user PL I/O pins
The MYD-CZU3EG/4EV/5EV-V2 Base Board (MYB-CZU3EG/4EV/5EV)
PS Unit
-
One USB 3.0 (Type-C interface)
-
One USB to UART port
-
One TF card slot
-
One CAN interface
-
One 10/100/1000Mbps Ethernet interface
-
One PCIe interface
-
One SATA interface
-
One 2.54mm pitch 14-pin JTAG interface (PS, PL reused)
-
Buttons (one user button, one system reset button and one ps-programming button)
-
One DisplayPort (DP)
-
Battery backed RTC
PL Unit
-
One Xilinx standard LPFMC interface
-
One HDMI interface (signals reused with LCD/TSP interface)
-
Four SFP+ transceiver interfaces (up to 10Gpbs, only for Zynq UltraScale+ EV Devices)
-
Two-channel Pmod
-
ARDUINO user interface
-
LCD/TSP interface (24-bit RGB, supports resistive and capacitive touch screen panels)
-
LEDs
- One blue LED for power indicator
- One red LED for FPGA programming indicator
- One green LED for user defined
OS Support
Other MYIR's Xilinx Products
http://www.myirtech.com/xilinxseries.asp
Z-turn Board V2 Single Board Computer (based on Zynq-7010 / 7020)
Z-turn Lite Single Board Computer (based on Zynq-7010)
MYD-C7Z015 Development Board (MYC-C7Z015 CPU Module as core board, Zynq-7015)
MYD-Y7Z010/20-V2 Development Board (MYC-Y7Z010/20-V2 CPU Module as core board, Zynq-7010 / 7020)
MYD-C7Z010/20-V2 Development Board (MYC-C7Z010/20-V2 CPU Module as core board, Zynq-7010 / 7020)
FZ3 Card - deep learning accelerator card (based on Xilinx Zynq UltraScale+ ZU3EG MPSoC)
FZ5 Card (AI Accelerator Card based on Zynq UltraScale+ ZU5EV MPSoC)
|
Hardware Features
Zynq® UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing. Built on a common real-time processor and programmable logic equipped platform, three distinct variants include dual application processor (CG) devices, quad application processor and GPU (EG) devices, and video codec (EV) devices.
Zynq UltraScale+ MPSoCs
The Zynq UltraScale+ family provides footprint compatibility to enable users to migrate designs from one device to another. Any two packages with the same footprint identifier code (last letter and number sequence) are footprint compatible. MYIR is using the XCZU3EG-1SFVC784 MPSoC for MYD-CZU3EG-V2 Development Board, XCZU4EV-1SFVC784 MPSoC for MYD-CZU4EV-V2 Development Board and XCZU5EV-2SFVC784 MPSoC for MYD-CZU5EV-V2 Development Board by default, the C784 package covers the widest footprint compatibilities that enable users to select devices among CG, EG and EV.
Zynq UltraScale+ MPSoC Device Migration Table
MYIR may also supply the MYC-CZU3EG/4EV/5EV-V2 CPU Modules with XCZU2CG, XCZU3CG, XCZU4EV or XCZU5EV MPSoC as options. The main features for the MPSoC devices are summarized as below.
|
Device
|
XCZU2CG
|
XCZU3CG
|
XCZU3EG
|
XCZU4EV
|
XCZU5EV
|
|
Logic cells (k)
|
103
|
154
|
154
|
192
|
256
|
|
CLB Flip-Flops (K)
|
94
|
141
|
141
|
176
|
234
|
|
CLB LUTs (K)
|
47
|
71
|
71
|
88
|
117
|
|
Block RAM (Mb)
|
5.3
|
7.6
|
7.6
|
4.5
|
5.1
|
|
UltraRAM (Mb)
|
-
|
-
|
-
|
13.5
|
18.0
|
|
DSP Slices
|
240
|
360
|
360
|
728
|
1,248
|
|
GTX transceivers
|
PS-GTR4x (6Gb/s)
|
PS-GTR4x (6Gb/s)
|
PS-GTR4x (6Gb/s)
|
PS-GTR4x (6Gb/s), GTH4x (16.3Gb/s)
|
PS-GTR4x (6Gb/s), GTH4x (16.3Gb/s)
|
|
Processor Units
|
|
Application Processor Unit
|
Dual-core ARM® Cortex™-A53 MPCore™ up to 1.3GHz
|
Quad-core ARM® Cortex™-A53 MPCore™ up to 1.5GHz
|
|
Memory w/ECC
|
L1 Cache 32KB I / D per core, L2 Cache 1MB, on-chip Memory 256KB
|
|
Real-Time Processor Unit
|
Dual-core ARM Cortex-R5 MPCore™ up to 600MHz
|
|
Memory w/ECC
|
L1 Cache 32KB I / D per core, Tightly Coupled Memory 128KB per core
|
|
Graphics Processing Unit
|
-
|
-
|
Mali™-400 MP2 up to 667MHz
|
|
Video Codec
|
-
|
-
|
-
|
H.264 / H.265
|
|
Memory L2 Cache
|
64KB
|
|
External Memory, Connectivity, Integrated Block Functionality
|
|
Dynamic Memory Interface
|
x32/x64: DDR4, LPDDR4, DDR3, DDR3L, LPDDR3 with ECC
|
|
Static Memory Interfaces
|
NAND, 2x Quad-SPI
|
|
High-Speed Connectivity
|
PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet
|
|
General Connectivity
|
2 x USB 2.0, 2 x SD/SDIO, 2 x UART, 2 x CAN 2.0B, 2 x I2C, 2 x SPI, 4 x 32b GPIO
|
|
Power Management
|
Full / Low / PL / Battery Power Domains
|
|
Security
|
RSA, AES, and SHA
|
|
AMS - System Monitor
|
10-bit, 1MSPS – Temperature and Voltage Monitor
|
Zynq UltraScale+ MPSoC Device Selection Guide
MYC-CZU3EG/4EV/5EV-V2 CPU Module Function Block Diagram
MYD-CZU3EG/4EV/5EV-V2 Development Board Function Block Diagram
MYD-CZU3EG/4EV/5EV-V2 Development Board Dimension Chart
|
Software Features
The MYD-CZU3EG/4EV/5EV-V2 Development Board is preloaded with PetaLinux 2020.1. MYIR provides software package in product disk along with the goods delivery. The software package features as below:
|
Item
|
Features
|
Description
|
Remark
|
|
Cross compiler
|
gcc9.2.0
|
gcc version 9.2.0
|
|
|
gcc 5.2.1
|
gcc version 5.2.1 (Linaro GCC5.2)
|
|
|
Boot program
|
BOOT.BIN
|
First boot program including FSBL, u-boot2020.01
|
Source code provided
|
|
Linux Kernel
|
Linux 5.4.0
|
Customized kernel for MYD-CZU3EG/4EV/5EV-V2 Board
|
Source code provided
|
|
Drivers
|
SFP & SFP+
|
SFP driver and SFP+ driver (only for MYD-CZU4EV/5EV-V2)
|
Source code provided
|
|
USB Host
|
USB2.0/USB3.0 Host driver
|
Source code provided
|
|
Ethernet
|
Gigabit Ethernet driver
|
Source code provided
|
|
MMC/SD/TF
|
MMC/SD/TF card driver
|
Source code provided
|
|
QSPI Flash
|
QSPI Flash driver
|
Source code provided
|
|
PCIE
|
PCIE network card driver
|
Source code provided
|
|
CAN
|
CAN driver
|
Source code provided
|
|
LCD Controller
|
LCD driver
|
Source code provided
|
|
DP Controller
|
DP Display driver
|
Source code provided
|
|
HDMI
|
HDMI driver
|
Source code provided
|
|
Button
|
Button driver
|
Source code provided
|
|
UART
|
UART driver
|
Source code provided
|
|
I2C
|
I2C driver
|
Source code provided
|
|
LED
|
LED driver
|
Source code provided
|
|
GPIO
|
GPIO driver
|
Source code provided
|
|
QSPI
|
QSPI Flash MT25QU512ABB driver
|
Source code provided
|
|
Touch Screen
|
TSC2007 resistive touch screen driver
|
Source code provided
|
|
FT5X0X capacitive touch screen driver
|
Source code provided
|
|
SATA
|
SATA HD driver
|
Source code provided
|
|
Watch dog
|
Watch dog driver
|
Source code provided
|
|
Example
|
Including button, LED, CAN, Socket examples
|
|
File System
|
Ramdisk
|
Ramdisk system image
|
File System
|
|
Rootfs.tar
|
Buildroot, including QT
|
Source code provided
|
|
Petalinux
|
Petalinux2020.1
|
Supports Xilinx development tools for PetaLinux 2020.1 and provides complete
customized Linux BSP in source code for MYIR’s MYD-CZU3EG/4EV board
including kernel, uboot, filesystem, etc.
Supports Xilinx Vitis Software Development Platform.
|
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
MYC-CZU3EG/4EV/5EV-V2 CPU Module Overview
|
1.00 MB
|
|
|
2
|
Zynq UltraScale+ MPSoC Product Selection Guide
|
1.88 MB
|
|
|
3
|
MYC-CZU3EG/4EV/5EV-V2 Pinouts Description
|
426 KB
|
|
|
4
|
MYD-CZU3EG/4EV/5EV-V2 Development Board Overview
|
1.20 MB
|
|
|
MYC-CZU3EG/4EV/5EV-V2 CPU Module Top-view
MYC-CZU3EG/4EV/5EV-V2 CPU Module Bottom-view
MYD-CZU3EG/4EV/5EV-V2 Development Board with installed heatsink
MYD-CZU3EG/4EV/5EV-V2 Development Board without installed heatsink
|
Price and Ordering
|
Item
|
Packing List
|
Unit Price
|
Ordering
|
|
MYD-CZU3EG-V2 Development Board
(Part No.: MYD-CZU3EG-V2-4E4D-1200-C)
|
- One MYD-CZU3EG/4EV/5EV-V2 Board
(including the base board and CPU Module
with installed active heatsink)
- One HDMI cable
- One 12V/5A Power adapter
- One 1.2m Mini USB2.0 cable
- One USB A3.0 to Type-C cable Adapter
- One 16GB TF card
|
USD429
|
|
|
MYD-CZU4EV-V2 Development Board
(Part No.: MYD-CZU4EV-V2-4E4D-1200-C)
|
USD629
|
|
MYD-CZU5EV-V2 Development Board
(Part No.: MYD-CZU5EV-V2-4E4D-1200-C)
|
USD799
|
|
|
MYC-CZU3EG-V2 CPU Module
(Part No.: MYC-CZU3EG-V2-4E4D-1200-C)
|
One MYC-CZU3EG-V2 Module
|
USD319
|
|
|
(Part No.: MYC-CZU4EV-V2-4E4D-1200-I-FAN)
|
One MYC-CZU4EV-V2 Module
(delivered with installed heatsink by default)
|
USD519
|
|
|
(Part No.: MYC-CZU5EV-V2-4E4D-1200-I-FAN)
|
One MYC-CZU5EV-V2 Module
(delivered with installed heatsink by default)
|
USD699
|
|
|
MY-LCD70TP LCD Module
(Part No.: MY-TFT070RV2)
|
7-inch LCD Module with resistive touch screen
|
USD79
|
|
|
MY-LCD70TP-C LCD Module
(Part No.: MY-TFT070CV2)
|
7-inch LCD Module with capacitive touch screen
|
USD89
|
|
|
MY-WF003U WiFi Module
(Part No.: MY-WF003U)
|
MY-WF003U USB WiFi Module
|
USD19
|
|
|
Note:
1. One MYD-CZU3EG/4EV/5EV-V2 Development Board includes one CPU module MYC-CZU3EG/4EV/5EV-V2 with installed active heatsink and one base board. If you need more CPU modules, you can order extra ones.
2. Discount is available for mass orders. Please contact MYIR for inquiries.
3. We accept custom design based on the MYD-CZU3EG/4EV/5EV-V2, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
|
|
|
| |
|
|
|
|
