MYD-LT527-GK-B IPC Box
|
- Up to 1.8GHz Allwinner T527 Octa-core ARM Cortex-A55 MPU
- Up to 6 TOPs NPU, G57 MC1 GPU
- 4GB LPDDR4, 32GB eMMC Flash, 32Kbit EEPROM
- 1x USB 3.0, 4x USB 2.0, 2x CAN, RS232, 2x RS485, Micro SD Card Slot
- 2x Gigabit Ethernet, WiFi/Bluetooth, PCIe Slot for 4G Module
- Supports Mini-DP and HDMI for High-resolution Displays, along with Audio Input/Output Interface
- Supports Working Temperature Ranging from -40°C to 85°C
- Supports Linux and Ubuntu OS
- Rugged and Fanless Enclosure Design
|
The MYD-LT527-GK-B Industrial PC (IPC) Box offers a versatile solution, ideal for edge computing applications. It combines the MYD-LT527 development board with the MY-ICEB001 expansion board inside a rugged, fanless enclosure, powered by the Allwinner T527 SoC. This SoC boasts an Octa-core ARM Cortex-A55 CPU operating at up to 1.8GHz and includes a 2TOPs NPU for enhanced performance. The device is equipped with dual Gigabit Ethernet ports, four USB 2.0 interfaces, one USB 3.0 port, two RS232, two RS485, two CAN ports, and a microSD card slot. Additionally, it features integrated WiFi/Bluetooth for wireless communication and supports 4G LTE connectivity via an onboard USB-based Mini-PCIe interface. For display and audio, it provides HDMI and Mini DisplayPort (Mini DP) outputs. MYIR offers SDKs for Linux and Ubuntu operating systems, including u-boot, kernel, driver source code, and related development tools. This IPC Box is well-suited for a wide range of applications, such as industrial controllers, edge computing, integrated gateways, power measurement and control terminals, new energy management servers, artificial intelligence, and more.

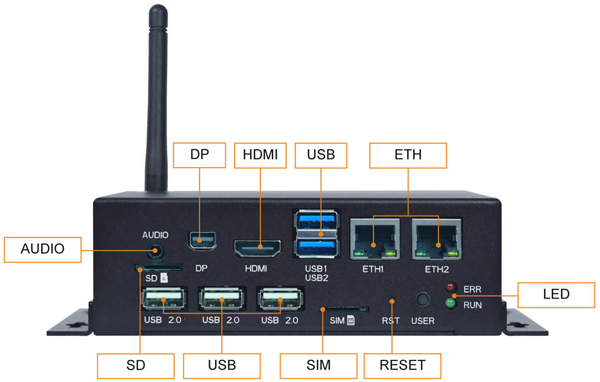

MYD-LT527-GK-B IPC Box Front View

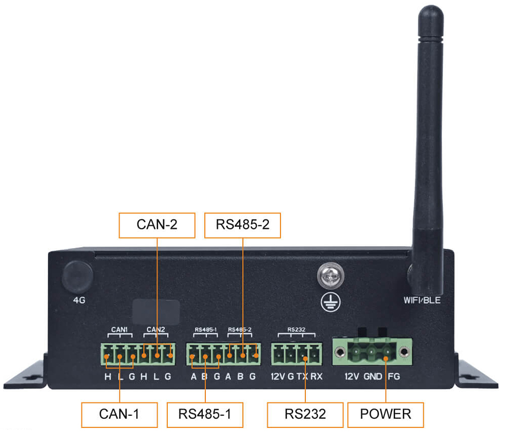

MYD-LT527-GK-B IPC Box Rear View
MYD-LT527 Development Board with an expansion board MY-ICEB001
Top-view and Bottom-view of MYD-LT527 Development Board

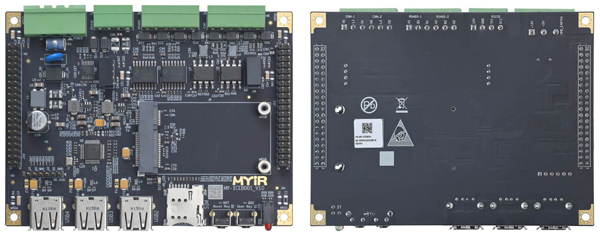

Top-view and Bottom-view of MY-ICEB001 Expansion Board
Hardware Features
|
Features
|
Description
|
|
SoC
|
Allwinner T527 processor ((T527M02X0DCH))
- Octa-core ARM Cortex-A55, up to 1.8GHz
- 600MHz HIFI4 Audio DSP
- ARM G57 MC1 GPU
- Up to 2 Tops NPU
|
|
Memory
|
4GB LPDDR4
|
|
Storage
|
32GB eMMC
32Kbit EEPROM
1x Micro SD card slot
|
|
Communication
Interfaces
|
1x RS232
2x RS485
1x USB 3.0 Host Port
4x USB 2.0 Host Ports
2x 10/100/1000Mbps Ethernet Interfaces
2x CAN
WiFi/Bluetooth Module (complies with IEEE 802.11a/b/g/n/ac standard and supports BT 5.2)
1x WiFi/BT antenna interface
1x M.2 Socket for a USB-based 4G LTE Module
1x SIM card holder
|
|
Multimedia
Interfaces
|
1x HDMI 2.0 Interface (Supports 1920x1080@60Hz by default)
1x Mini DisplayPort (DP) Output Interface (Supports 2.5K@60Hz by default)
1x 3.5mm Headphone/Mic Audio Jack
|
|
Others
|
2x Buttons (1x Reset Button, 1x User Button)
2x LEDs (1x RUN Status LED, 1x ERR User LED)
|
|
Power supply
|
12VDC±20% 2A (Phoenix terminal)
|
|
Dimensions
|
130mm x 93.5mm x 44mm (without mounting bracket)
160mm x 93.5mm x 44mm (with mounting bracket)
|
|
Working Temp.
|
-40°C ~+85°C
(WiFi/BT Module: -30~85 Celsius)
|
|
Working humidity
|
5% ~ 95%, non-condensing
|
Software Features
The MYD-LT527-GK-B offers supports for Linux and Ubuntu OS and is equipped with comprehensive software packages. To assist clients in speeding up their projects, the kernel and numerous peripheral drivers are provided in source code format. Below is a brief overview of the key software features:
|
Item
|
Features
|
Description
|
Source Code
|
|
Bootloader
|
U-boot
|
Boot program uboot_2018.02
|
YES
|
|
Linux kernel
|
Linux kernel
|
Customized base on official kernel_5.15 version
|
YES
|
|
Device driver
|
MMC
|
eMMC driver
|
YES
|
|
SPI
|
SPI driver
|
YES
|
|
I2C
|
I2C driver
|
YES
|
|
USB Host
|
USB Host driver
|
YES
|
|
Ethernet
|
Gigabit Ethernet driver
|
YES
|
|
UART
|
RS232/RS485/UART driver
|
YES
|
|
CSI
|
MY-CAM003M camera module driver (OV5640)
|
YES
|
|
GPIO Key
|
Key driver
|
YES
|
|
GPIO LED
|
LED driver
|
YES
|
|
RTC
|
RTC driver
|
YES
|
|
HDMI
|
HDMI driver
|
YES
|
|
Touch
|
Touch screen driver
|
YES
|
|
WIFI/Bluetooth
|
WIFI/BT driver
|
YES
|
|
Audio
|
Audio driver
|
YES
|
|
LVDS
|
LVDS driver
|
YES
|
|
CAN
|
CAN driver
|
YES
|
|
DP
|
Standard DP display driver
|
YES
|
|
File system
|
myd-lt527-core.img
|
Full-featured image without GUI, built by buildroot
|
YES
|
|
myd-lt527-full.img
|
Full-featured image with GUI, built by buildroot
|
YES
|
|
Ubuntu 22.04
|
image with built with Ubuntu 22.04
|
YES
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
The MYD-LT527-GK-B IPC Box Overview
|
1.08 MB
|
|
Price and Ordering
|
Item
|
Packing List
|
Unit Price
|
Ordering
|
|
MYD-LT527-GK-B IPC Box
(Part No.: MYD-LT527MN-32E4D-180-I-GK-B)
|
- One MYD-LT527-GK-B IPC Box
- One Quick Start Guide
- Phoenix connectors
- One WiFi antenna
|
USD169
|
|
|
MYD-LT527 Development Board
(Part No.: MYD-LT527MN-32E4D-180-I-GK)
|
- One MYD-LT527 Board
- One MY-ICEB001 Expansion Board
- One USB cable
- One 12V/3A Power adapter
- One Quick Start Guide
|
USD149
|
|
|
