Products > Development Boards > MYD-YT507H (Allwinner T507-H) > MYD-YT507H Development Board |
| |
 |
MYD-YT507H Development Board |
- MYC-YT507H CPU Module as Controller Board
- 1.5GHz ALLWINNER T507-H Quad-core ARM Cortex-A53 MPU
- 1GB/2GB LPDDR4, 8GB eMMC Flash, 32Kbit EEPROM
- Serial ports, 2 x USB 2.0 Host, 1 x USB 2.0 OTG, TF Card Slot
- 1 x Gigabit Ethernet, 1 x 10/100Mbps Ethernet, 4G LTE Module Interface
- Supports Dual LVDS, HDMI and CVBS Display Output Interfaces
- Supports MIPI-CSI and DVP Camera Input
- Supports Running Linux and Android OS
- Optional LCD Modules, Camera Modules, WiFi/BT Module and RPI Module (RS232/RS485)
|
|
|
|
| |
|
MYIR is a thrid party partner of Allwiinner, welcome to use MYIR's Allwinner series products!
We also offer custom design services, welcome your inquiry!
https://www.myirtech.com/allwinnerseries.asp
The MYD-YT507H Development Board consists of a compact CPU Module MYC-YT507H and a base board to provide a complete evaluation platform for ALLWINNER T507-H Processor which among Allwinner T5 series with a 1.5GHz quad-core Cortex-A53 CPU and a Mali-G31 MP2 GPU. The processor is AEC-Q100 certified and targets the new generation of automotive markets. Typical applications are power IoT, automotive electronics, commercial display, industrial control, medical devices, intelligent terminals and more others.
The MYD-YT507H has a base board which installed MYC-YT507H CPU Module through 1.0mm pitch 164-pin Castellated-Hole and 50-pin LGA expansion interfaces. The MYC-YT507H CPU Module is a highly-integrated SoM which combines the ALLWINNER T507-H processor, 1GB/2GB DDR4, 8GB eMMC, 32Kbit EEPROM and PMIC. The base board is explored with Serial ports, one Gigabit Ethernet and one 10/100M bps Ethernet, two USB 2.0 HOST and one USB 2.0 OTG, one TF card slot as well as a USB based 4G Mini PCIE interface. It has a DVP camera interface and a MIPI-CSI interface to allow connecting with camera modules. It also supports multi video output interfaces such as dual LVDS, HDMI and CVBS OUT, to achieve different display in dual screens.

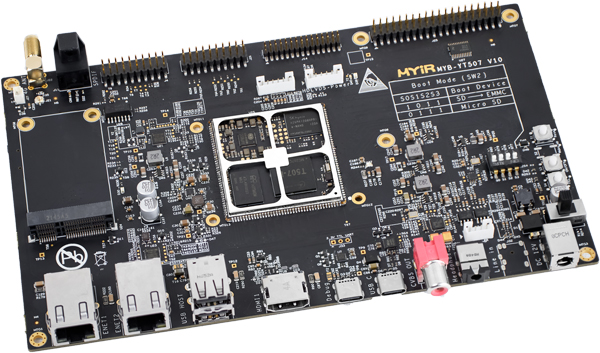

MYD-YT507H Development Board Top-view (delivered with shieldinig cover by default)
MYD-YT507H Development Board Bottom-view
The MYD-YT507H Development Board is delivered with one Quick Start Guide, one USB cable, one 12V/5A power adapter and one DC power jack adapter to provide user a complete platform for evaluating and prototyping based on T507-H processor. MYIR also offers MY-CAM002U USB Camera Module, MY-CAM011B DVP Camera Module, MY-CAM003M MIPI Camera Module, MY-WIREDCOM RPI Module (RS232/RS485), MY-WF005S WiFi/BT Module and MY-LVDS070C LCD Module as options for the board which have greatly enhanced the functionality of the board.
The MYD-YT507H is capable of running Linux or Android OS. MYIR provides abundant software resources for Linux 4.9 based MYIR MEasy HMI V2.0 system with QT5.12.5, Ubuntu 18.04.5 system and Android 10 system, including kernel, driver source codes and compilation tools to enable users to start their development rapidly and easily.
Features
Mechanical Parameters
-
Dimensions: 200mm x 120mm (base board), 45mm x 43mm (CPU Module)
-
PCB Layers: 6-layer design (base board), 10-ayer design (CPU Module)
-
Power supply: 12V/2A (base board), 5V/2A (CPU Module)
-
Working temperature: -40~85 Celsius
The MYD-YT507H Controller Board (MYC-YT507H CPU Module)
MYC-YT507H CPU Module Top-view and Bottom-view (delivered with shieldinig cover by default)
Processor
-
Allwinner T507-H processor
- Up to 1.5GHz Quad-core ARM Cortex-A53
- ARM Mali-G31 MP2 GPU with support for OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
Memory
-
1GB/2GB LPDDR4 (supports optional 3GB / 4GB LPDDR4)
-
8GB eMMC (supports optional 4GB, 16GB / 64GB eMMC)
-
32Kbit EEPROM
Peripherals and Signals Routed to Pins
-
Power Management IC (Allwinner AXP853T)
-
1.0mm pitch 164-pin Castellated-Hole and 50-pin LGA expansion interfaces
- 1 x RGMII
- 1 x RMII
- 4 x I2C
- 2 x SPI
- 3 x USB 2.0 Host
- 1 x USB 2.0 OTG
- 1 x DVP digital camera
- 1 x MIPI CSI camera
- 2 x SDIO
- 6 x UART
- 4 x GPADC
- 1x LRADC
- 1 x HDMI 2.0a (supports 4K@60fps)
- 2 x Single-channel LVDS or 1 x Dual-channel LVDS or 24-bit RGB (supports up to 1080p@60fps)
- 1x TV CVBS output (supports PAL/NTSC)
- 1 x JTAG
- 3x I2S/PCM
- 1x Audio out
- up to 138 x GPIO
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.
The MYD-YT507H Development Board Base Board
-
1 x Power Jack
-
1 x Power Switch
-
Serial ports
- 1 x Debug UART (TTL, USB Type-C connector)
- 2 x TTL serial ports (UART2, UART5)
-
USB
- 2 x USB2.0 Host ports
- 1 x USB 2.0 OTG port (Type-C)
- 1 x Mini-PCIe interface (for 4G LTE Module)
-
1 x SIM card slot
-
Ethernet
- 1 x 10/100/1000 Mbps Ethernet interface (RJ45, ENET1)
- 1 x 10/100 Mpbs Ethernet interface (RJ45, ENET2)
-
1 x Micro SD card slot
-
Video Input
- 1 x MIPI-CSI Interface (0.5mm pitch 24-pin FPC connector)
Supports MYIR’s MY-CAM003M Camera Module through J2
- 1 x DPV Camera Interface (0.5mm pitch 30-pin FPC connector)
Supports MYIR’s MY-CAM011B Camera Module through J3
-
Video Output
- 1 x HDMI Output Interface
- 2 x Single-channel LVDS Display interface (LVDS0 & LVDS1, 40-pin 0.5mm pitch FPC connector)
- 1 x Dual-channel LVDS Display interface (J14, 30-pin 2.0mm pitch header connector)
Supports MYIR’s MY-LVDS070C LCD Module with Capacitive Touch Screen through the LCD interface
- 1 x TV CVBS Display interface
-
Audio
- 1 x 3.5mm Headphone/Mic Jack
- 1 x SPDIF Audio Output
- 1 x Speaker
-
1 x 2.54mm 2 x 20-pin male expansion header
(J25, GPIO/TWI/UART, compatible with Raspberry PI standard 40-pin extension interface)
Supports MYIR’s MY-WIREDCOM RPI Module through J25 to extend RS485 and RS232 functions
-
1 x 2.54mm 2*10-pin expansion header (J26)
- 1 x SDIO
- 1 x UART
Supports MYIR’s MY-WF005S WiFi/BT Module through the J26
-
3 x Buttons (one for Reset, one for Power On/Off and one for FLASH)
-
1 x RTC Battery Interface
OS Support
Other MYIR's Allwinner Products
https://www.myirtech.com/allwinnerseries.asp
MYD-YT113X Development Board (MYC-YT113X CPU Module as core board, Allwinner T113-S3)
MYD-YT113i Development Board (MYC-YT113i CPU Module as core board, Allwinner T113-i)
MYD-LT527M Development Board (MYC-LT527M CPU Module as core board, Allwinner T527)
|
Hardware Specification
The MYC-YT507H CPU Module is using Allwinner T507-H Microprocessor with 15 mm x 15 mm size,0.65 mm ball pitch,0.35 mm ball size, TFBGA 421balls. The chip family integrates Cortex-A53 quad-core CPU, G31 MP2 GPU, 32-bit DDR3/LPDDR3/DDR4/LPDDR4 DRAM, multi video output interfaces (RGB/2*LVDS/ HDMI/CVBS OUT), and multi video input interfaces (MIPI CSI/BT656/BT1120). The chip family supports 4K@60fps H.265 decoder, 4K@25fps H.264 encoder, DI, 3D noise reduction, SmartColor system, and keystone correction module, which provides smooth user experience and professional visual effect. Supports 4 x USB, 2 x Ethernet MAC, 6 x UART, 6 x TWI, 4 x GPADC, greatly facilitating product expansion.
|
Resources
|
Parametric Description
|
|
CPU
|
- Quad-core ARM Cortex-A53@1.5Ghz
|
|
GPU
|
- G31 MP2
- Supports OpenGL ES 3.2/2.0/1.0, Vulkan 1.1, OpenCL 2.0
|
|
External Storage
|
- 32-bit DDR4/DDR3/DDR3L/LPDDR3/LPDDR4 interface, supporting maximum capacity of 4GB
- SD3.0/eMMC5.0 interface
- 8-bit Nand flash interface with maximum 80-bit/1KB ECC
|
|
Video Engine
|
Video decoder
- H.265 MP decoder up to 4K@60fps
- H.264 BL/MP/HP decoder up to 4K@30fps
- VP9 decoder up to 4K@60fps
- AVS2 decoder up to 4K@60fps
- Multi-format 1080p@60fps video playback, including VP8, MPEG1/2 SP/MP, MPEG4, SP/ASP,
- AVS+/AVS JIZHUN, VC1 SP/MP
Video encoder
- H.264 encoder up to 4K@25fps
- MJPEG encoder up to 4K@15fps
- JPEG encoder up to 8K x 8K resolution
|
|
Video Input
|
- Supports one 8-/10-/12-/16-bit digital camera(DC) interface
- Maximum pixel clock of 148.5MHz for each DC interface
- BT656, BT1120 video input for multichannel YUV
- Four-lane MIPI CSI, up to lGbps per lane in HS transmission, compliant with MIPI-CSI2 V1.00 and MIPI
DPHY V1.00
- Maximum video capture resolution of 8M@30fps or 4x 1080p@25fps for MIPI CSI
- Supports formats:YUV422,YUV420,RAW-8,RAW-10,RAW-12
|
|
Audio
|
- Two DAC channels
- Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
- One Audio HUB, supporting internal mixing function
- Embedded 3 I2S/PCM for connecting the external devices (I2S0 for extended audio codec, I2S2 for BT,
I2S3 for digital power amplifier)
- Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
- I2S mode supports 8 channels, and 32-bit/192kbit sample rate
- I2S and TDM-modes support maximum 16 channels, and 32-bit/96kbit sample rate
- One OWA OUT interface, supporting 16-/20-/24-bit outputs
- Integrated digital microphone, supporting maximum 8 digital PDM microphones
|
|
Display Output
|
- HDMI 2.0a up to 4K@60fps
- TV CVBS output, supporting PAL/NTSC
- LVDS interface with dual link, up to 1080p@60fps
- RGB interface with DE/SYNC mode, up to 1080p@60fps
|
|
Security Engine
|
- Supports Full Disk Encryption
- AES, DES, 3DES, and XTS encryption and decryption algorithms
- MD5, SHA, and HMAC tamper proofing
- RSA, ECC signature and verification algorithms
- Supports 160-bit hardware pseudo random number generator(PRNG) with 175-bit seed
- Supports 256-bit hardware true random number generator(TRNG)
- Integrated 2K-bit EFUSE for chip ID and security application
|
|
Interfaces
|
- 3 x USB2.0 Host, l x USB2.0 OTG
- 2 x Ethernet MAC (one 10/100 Mbps Ethernet port, one 10/100/1000 Mbps Ethernet port)
- SDIO 3.0, TSC, SCR, CIR Receiver
- 6 x TWI, 2 x SPI, 6 x UART
- 6-ch PWM, 4-ch GPADC. 1-ch LRADC
|
|
PMIC
|
- Companion Allwinner Power Management IC
|
|
Packaging
|
- TFBGA 421balls
- 15 mm x 15 mm size,0.65 mm ball pitch,0.35 mm ball size
|
|
Process Technology
|
- 28nm HPC
|
Features of T507H Processor
T5 Series Block Diagram
MYD-YT507H Development Board Block Diagram
MYD-YT507H Dimensions
|
Software Features
The MYD-YT507H development board supports Linux and Android OS. It comes with software packages. The kernel and many peripheral drivers are available in source code to assist clients expedite their ideas. The following are a summary of the software features:
|
Item
|
Feature
|
Description
|
Source Code
|
|
Bootloader
|
U-boot
|
Boot boot program uboot_2018
|
YES
|
|
Linux kernel
|
Linux kernel
|
Customized base on official kernel_4.9.17 version
|
YES
|
|
Device driver
|
PMIC
|
AXP858 driver
|
YES
|
|
USB Host
|
USB Host driver
|
YES
|
|
USB OTG
|
USB OTG driver
|
YES
|
|
TWI
|
TWI bus driver
|
YES
|
|
SPI
|
SPI bus driver
|
YES
|
|
Ethernet
|
10M/100M/1000M driver
|
YES
|
|
SDC
|
eMMC/TF card storage driver
|
YES
|
|
HDMI
|
HDMI display driver
|
YES
|
|
Singer LVDS
|
7-inch single-channel LVDS driver
|
YES
|
|
Double LVDS
|
21.5 inch dual LVDS driver
|
YES
|
|
CVBS OUT
|
CVBS display driver
|
YES
|
|
Linout
|
audio output driver
|
YES
|
|
SPDIF
|
SPDIF audio output driver
|
YES
|
|
audio
|
Sgtl5000 audio driver
|
YES
|
|
4G
|
4G driver
|
YES
|
|
PWM
|
PWM control
|
YES
|
|
GPADC
|
GPADC driver
|
YES
|
|
LRADC
|
LRADC driver
|
YES
|
|
RTC
|
real time clock driver
|
YES
|
|
IO driver
|
Generic GPIO driver
|
YES
|
|
tty
|
RS232/RS485/TTL driver
|
YES
|
|
Touch
|
capacitive touch
|
YES
|
|
Camera (DVP)
|
500W camera driver
|
YES
|
|
Camera (MIPI)
|
500W camera driver
|
YES
|
|
WiFi & BT
|
AP6212 driver
|
YES
|
|
Watchdog
|
Watchdog driver
|
YES
|
|
File system
|
Ubuntu18.04
|
Base on ubuntu-base-18.04.5-base-arm64
|
YES
|
|
myir-image-full
|
Base on buildroot construction zone Qt 5.12.5 file system
|
YES
|
|
myir-image-android10
|
Compiled and constructed based on Android10 SDK
|
YES
|
|
Application Program
|
GPIO LED
|
Indicator routine
|
YES
|
|
GPIO KEY
|
keystroke routine
|
YES
|
|
NET
|
TCP/IP Sokect C/S routine
|
YES
|
|
eeprom
|
Read/write eeprom routine
|
YES
|
|
RTC
|
Real Time Clock routine
|
YES
|
|
RS232
|
RS232 routine
|
YES
|
|
RS485
|
RS485 routine
|
YES
|
|
LCD
|
LCD routine
|
YES
|
|
Camera
|
Camera display routine
|
YES
|
|
Compiler
Tool Chain
|
Cross compiler
|
gcc-linaro-7.4.1-2019.02-x86_64_aarch64-linux-gnu
|
BINARY
|
MYD-YT507H Software Features
|
MYC-YT507H CPU Module Top-view (delivered with shielding cover by default)
MYC-YT507H CPU Module Bottom-view
MYD-YT507H Development Board Top-view
MYD-YT507H Development Board Bottom-view
|
Price and Ordering
|
Item
|
Part No.
|
Packing List
|
Unit Price
|
Ordering
|
|
MYD-YT507H
Development Board
|
MYD-YT507H-8E1D-150-I
|
- One MYD-YT507H board
(including MYC-YT507H CPU Module)
- One USB Type-A to Type-C cable
- One 12V/5A Power adapter
- One DC power jack adapter
- One Quick Start Guide
|
USD99
|
|
|
MYD-YT507H-8E2D-150-I
|
USD109
|
|
|
MYC-YT507H
CPU Module
|
MYC-YT507H-8E1D-150-I
|
One MYC-YT507H Module
|
USD34.80
|
|
MYC-YT507H-8E2D-150-I
|
USD39.80
|
|
|
MY-CAM002U
USB Camera Module
|
MY-CAM002U
|
USB Camera Module
|
USD19
|
|
|
MY-WIREDCOM
RPI Module
|
MY-WIREDCOM
|
RPI Mofule for extension
of RS232/RS485
|
USD18
|
|
|
MY-WF005S
WiFi/BT Module
|
MY-WF005S
|
WiFi/Bluetooth Module
|
USD18
|
|
|
MY-CAM011B
Camera Module
|
MY-CAM011B
|
Bus Camera Module
|
USD25
|
|
|
MY-CAM003M
Camera Module
|
MY-CAM003M
|
MIPI Camera Module
|
USD25
|
|
|
|
MY-LVDS070C
|
7-inch LCD Module
with capacitive touch screen
|
USD99
|
|
|
Note:
1. One MYD-YT507H Development Board includes one CPU module MYC-YT507H mounted on the base board. If you need more CPU module, you can order extra ones.
2. Discount is available for mass orders. Please contact MYIR for inquiries.
3. We accept custom design based on the MYD-YT507H, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
|
|
|
| |
|
|
|
|
Overview
