Z-turn Board V2

Z-turn Board V2

- 667MHz Xilinx XC7Z010/020 Dual-core ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic
- 1GB DDR3 SDRAM (2 x 512MB, 32-bit), 16MB QSPI Flash, 64Kbit EEPROM
- USB_UART, USB2.0 OTG, 1 x 10/100/1000Mbps Ethernet, CAN, HDMI, TF, …
- Onboard Three-axis Acceleration Sensor and Temperature Sensor
- Supports Optional Camera Module and Z-turn IO Cape
- Ready-to-Run Linux Single Board Computer
- Supports Python Development


MYIR is a Xilinx Alliance Member, welcome to use MYIR's Xilinx products!
We also offer ODM & OEM services, welcome your inquiry!

http://www.myirtech.com/xilinxseries.asp


The Z-turn Board V2 is a cost-optimized version for MYIRs popular Z-turn Board. It is a high-performance Single Board Computer (SBC) built around the Xilinx Zynq-7010 (XC7Z010) or Zynq-7020 (XC7Z020) All Programmable System-on-Chip (SoC) which is among the Xilinx Zynq-7000 family, featuring integrated dual-core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. Compared with the former version, the main differences are the IC parts as below:

IC Z-turn Board Z-turn Board V2
Gigabit Ethernet PHY KSZ9031RNX YT8531SH
Power IC TLV62130RGTR MP2143DJ-LF-Z
EEPROM / BL24C64A-PARC
DDR3 MT41K256M16HA-125:E NT5CC256M16ER-EK


The Z-turn Board V2 takes full features of the  Xilinx Z-7010 / Z-7020 SoC, it has 1GB DDR3, 16MB QSPI Flash and 64Kbit EEPROM on board and a set of rich peripherals including USB-to-UART, Mini USB OTG, 10/100/1000Mbps Ethernet, CAN, HDMI, TF, JTAG, Buzzer, G-sensor and Temperature sensor. On the rear of the board, there are two 1.27mm pitch 80-pin SMT female connectors to allow the availability of 96 / 106 user I/O and configurable as up to 39 LVDS pairs I/O.


Z-turn Board V2 - Xilinx Zynq-7010 / 7020 Single Board Computer


The Z-turn Board V2 is capable of running Linux operating system. MYIR has provided Linux 4.14.0 SDK, the kernel and many drivers are in source code. MYIR also provides a MYIR-PYNQ project to support Python development on the Z-turn Board V2. The board is delivered with complete accessory kit including two USB cables, one Ethernet cable, one HDMI cable, one 16GB TF card and one 5V power adapter which enables you to start the development quickly when getting the board out-of-the-box. MYIR also offers optional WiFi and camera modules, Z-turn IO Cape for the Z-turn Board V2. The Z-turn IO Cape provides many peripheral signals and interfaces including ADC, GPIO, LCD, Camera and three Pmod interfaces.

The Z-turn Board V2 is an excellent development platform for evaluating and prototyping for Zynq-7000 SoC. It can also be used as a System-on-Module (SOM) for your next embedded design; typical applications are Industrial Automation, Test & measurement, Medical Equipment, Intelligent Video Surveillance, Aerospace and military, etc.


Features


Item

Features

SoC

Xilinx XC7Z010-1CLG400 (Zynq-7010) or XC7Z020-2CLG400 (Zynq-7020)
- 667MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz)
- Integrated Artix-7 class FPGA subsystem
with 28K logic cells, 17,600 LUTs, 80 DSP slices (for XC7Z010)
with 85K logic cells, 53,200 LUTs, 220 DSP slices (for XC7Z020)

- NEON™ & Single / Double Precision Floating Point for each processor
-
Supports a Variety of Static and Dynamic Memory Interfaces

Memory

1GB DDR3 SDRAM (2 x 512MB, 32-bit)

Storage

16MB QSPI Flash

64Kbit EEPROM

TF card interface

Communications

1 x 10/100/1000M Ethernet

1 x CAN

1 x Mini USB2.0 OTG

1 x USB-UART debug interface

Display

1 x HDMI (supports 1080p resolution)
- We offer reference design for HDMI and LCD display functions without limitation for its. The IP cores in the design are provided by Xilinx. MYIR will provide Vivado project and SDK testing programs.

- We also offer reference design for using evaluation version of Xylon's logiCVC-ML and logiCLK IP core. Please contact Xylon to buy the license of the IP core for logiCVC-ML or logiCLK.

http://www.logicbricks.com/Products/logiCVC-ML.aspx

http://www.logicbricks.com/Products/logiCLK.aspx

User I/O

Brought out via two 1.27mm pitch 80-pin SMT female connectors
- 90/106 user I/O (7010/7020)
- Configurable as up to 39 LVDS pairs I/O

Dimensions

63mm x 102mm x 1.6mm (8-layer PCB design)

Power supply

USB power supply or DC 5V/2A

Working Temp.

0~70 Celsius (commercial grade)

Others

Onboard three-axis acceleration sensor and temperature sensor
1 x 2.54mm pitch 14-pin JTAG interface
2 x Buttons (1x Reset, 1 x User)
4-channel toggle switch
5 x LEDs (3 x User LEDs, 1 x Power indicator, 1 RGB LED)
1 x Buzzer

OS support

Linux 4.14.0

Target Applications

Evaluation and Prototyping for Zynq-7000 AP SoC

Industrial Automation

Test & measurement

Medical Equipment

Intelligent Video Surveillance

Aerospace and military

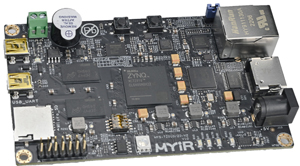

Z-turn Board V2 (Top-view)



Z-turn Board V2 (Bottom-view)


Z-turn IO Cape (an IO extension board for Z-turn Board V2)


Z-turn Board V2 Mounted on Z-turn IO Cape


Other MYIR's Xilinx Products

http://www.myirtech.com/xilinxseries.asp

Z-turn Lite Single Board Computer (based on Zynq-7010)

MYD-C7Z015 Development Board (MYC-C7Z015 CPU Module as core board, Zynq-7015)

MYD-Y7Z010/20-V2 Development Board (MYC-Y7Z010/20-V2 CPU Module as core board, Zynq-7010 / 7020)

MYD-C7Z010/20-V2 Development Board (MYC-C7Z010/20-V2 CPU Module as core board, Zynq-7010 / 7020)

MYD-CZU3EG/4EV/5EV-V2 Development Board (MYC-CZU3EG/4EG/5EV-V2 CPU Module as core board, ZU3EG/4EV/5EV)

FZ5 Card (AI Accelerator Card based on Zynq UltraScale+ ZU5EV MPSoC)

FZ3 Card - deep learning accelerator card (based on Xilinx Zynq UltraScale+ ZU3EG MPSoC)





Hardware Features

The Zynq™-7000 family of devices combines the software programmability of a Processor with the hardware programmability of an FPGA, resulting in unrivaled levels of system performance, flexibility, scalability while providing system benefits in terms of power reduction, lower cost with fast time to market. Unlike traditional SoC processing solutions, the flexible programmable logic of the Zynq-7000 devices enables optimization and differentiation, allowing designers to add peripherals and accelerators to adapt to a broad base of applications.


The Zynq-7000 AP SoC leverages the 28nm scalable optimized programmable logic used in Xilinx’s 7 series FPGAs. Each device is designed to meet unique requirements across many use cases and applications. The Z-7010, Z-7015, and Z-7020 leverage the Artix®-7 FPGA programmable logic and offer lower power and lower cost for high-volume applications. The Z-7030, Z-7035, Z-7045, and Z-7100 are based on the Kintex®-7 FPGA programmable logic for higher-end applications that require higher performance and high I/O throughput.


ZYNQ-7000 Device Family




Zynq-7000 Devices


Z-turn Board V2 Function Block Diagram


Z-turn Board V2 Dimension Chart (Top-view)



Z-turn Board V2 Dimension Chart (Bottom-view)


Software Features


Item

Features

Description

Cross compiler

gcc 6.2.1

gcc version 6.2.1 (Linaro GCC Snapshot 6.2-2016.11)

Boot program

BOOT.BIN

First boot program including FSBL, bitstream and u-boot

Linux Kernel

Linux 4.14.0

Customized kernel for Z-turn Board

Drivers

USB OTG

USB OTG driver

Ethernet

Gigabit Ethernet driver

MMC/SD/TF

MMC/SD/TF card driver

CAN

CAN driver

LCD Controller

LCD driver

HDMI

HDMI driver

Button

Button driver

UART

UART driver

LED

LED driver

GPIO

GPIO driver

Buzzer

Buzzer driver

G-Sensor

Three-axis acceleration sensor driver

Tempreture

Sensor

Temperature sensor driver

File System

Ramdisk

Ramdisk system image

Ubuntu Desktop 18.04

Tar file



Relative Download and Links

You can download relative chip datasheet, products datasheet, user manual, software package from below. Any inquiry, please contact MYIR.


1 Xilinx Zynq-7000 Overview 658 KB
2 Z-turn Board V2 Overview 1.33 MB
3 Z-turn Board track length for I/O
36 KB
4 Z-turn Board V2 Schematic
625 KB
5 Z-turn Board V2 Quick Start Guide
543 KB
6 Z-turn IO Cape Schematic
177 KB
7 MYIR PYNQ User Manual
876 KB

8 3D STEP file of Z-turn Board V2
4.28 MB



Z-turn Board V2


Z-turn Board V2 (bottom-view)




Price and Ordering


Item

Part No.

Packing List

Unit Price
(FOB Shenzhen)

Ordering

Z-turn Board V2

MYS-7Z010-V2-0E1D-667-C-S

- One Z-turn Board V2 (for Z-7010)
- One 16GB TF card

USD99

MYS-7Z020-V2-0E1D-766-C-S

- One Z-turn Board V2 (for Z-7020)
- One 16GB TF card
USD119

Z-turn Kit V2

MYS-7Z010-V2-0E1D-667-C

- One Z-turn Board V2
(for Z-7010 or 7020)

- One 1.5m cross Ethernet cable
- One 1.5m Mini USB2.0 cable
- One Mini USB OTG Data cable
- One HDMI cable
- One 16GB TF card
- One 5V/2A Power adapter

USD119

MYS-7Z020-V2-0E1D-766-C

USD139
MY-TFT070CV2 MY-LCD70TP-C 7-inch LCD Module

(Support through Z-turn IO Cape,
with capacitive touch screen)

USD89

MY-CAM002U USB Camera Module USD19

MY-CAPE001 Z-turn IO Cape USD29
