MYC-C7Z010/20-V2 CPU Module

MYC-C7Z010/20-V2 CPU Module

- Xilinx XC7Z010/20 Dual-core ARM Cortex-A9 Processor with Xilinx 7-series FPGA logic - 1GB DDR3 SDRAM (2 x 512MB, 32-bit)
- 4GB eMMC, 32MB QSPI Flash
- On-board Gigabit Ethernet PHY
- Two 0.8mm pitch 140-pin Board-to-Board Expansion Connectors
- Ready-to-Run Linux 4.14.0


MYIR is a Xilinx Alliance Member, welcome to use MYIR's Xilinx products!
We also offer custom design services, welcome your inquiry!

http://www.xilinx.com/alliance/memberlocator/1-2wv1bc.html


The MYC-C7Z010/20-V2 CPU Module is a Linux-ready ZYNQ-based SOM (System on Module) available for either Xilinx XC7Z010 or XC7Z020 device. It integrates Xilinx’s Dual Cortex-A9 + FPGA All Programmable SoC device, 1GB DDR3 SDRAM, 4GB eMMC, 32MB quad SPI Flash, a Gigabit Ethernet PHY, a USB PHY and external watchdog. Two 0.8mm pitch 140-pin board-to-board connectors provide a large number of I/O signals for ARM peripherals and FPGA I/Os to enable your base board extension. It is ideal for your next embedded design, thus helping you reduce development effort and speed up your time to market.

MYC-C7Z010-V2 CPU Module for Xilinx Zynq-7010

MYC-C7Z020-V2 CPU Module for Xilinx Zynq-7020

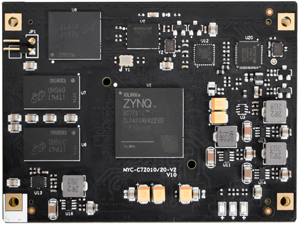

MYC-C7Z010/20-V2 CPU Module Top-view



MYC-C7Z010/20-V2 CPU Module Bottom-view


The MYC-C7Z010/20-V2 CPU Module is the core board of MYD-C7Z010/20-V2 development board which is an excellent platform for evaluation and prototype based on MYIR’s MYC-C7Z010/20-V2 CPU module. It takes full features of the Zynq-7010 and 7020 SoC and has extended rich peripherals to the base board including four USB Host ports, RS232 serial port, Gigabit Ethernet, CAN, LCD and HDMI. It has one XADC header to allow you take advantage of Xilinx XADC; it has three PMoD headers to meet your I/O needs with PMoDs (only for 7020); it also has a low-pin count FMC connector to allow various FMC cards for custom I/O options. Typical applications are Industrial Automation, Test & measurement, Medical Equipment, Intelligent Video Surveillance, Aerospace and military, etc.


MYD-C7Z010/20-V2 Development Board

Features

Mechanical Parameters

  • Dimensions: 75mm x 55mm (10-layer PCB design)
  • Power supply: 5V/0.5A
  • Working temp.: 0~70 Celsius or -40~85 Celsius (industrial grade)

SoC

  • Xilinx XC7Z010-1CLG400 (Zynq-7010) or XC7Z020-1CLG400/XC7Z020-2CLG400 (Zynq-7020)
  • - 667MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz)
    - Integrated Artix-7 class FPGA subsystem
    with 28K logic cells, 17,600 LUTs, 80 DSP slices (for XC7Z010)
    with 85K logic cells, 53,200 LUTs, 220 DSP slices (for XC7Z020)
    - NEON™ & Single / Double Precision Floating Point for each processor
    - Supports a Variety of Static and Dynamic Memory Interfaces

Memory

  • 1GB DDR3 SDRAM (512MB*2)
  • 4GB eMMC
  • 32MB QSPI Flash (16MB is optional)

Peripherals and Signals Routed to Pins

  • 10/100/1000M Ethernet PHY (YT8531SH)
  • External watchdog
  • Three LEDs
    - One blue LED for power indicator
    - One red LED for FPGA program done indicator
    - One green user LED
  • Two 0.8mm pitch 140-pin board-to-board expansion connectors bring out below signals:
    - One Gigabit Ethernet
    - One USB OTG 2.0
    - Two Serial ports
    - Two I2C
    - Two CAN BUS
    * Serial ports, I2C and CAN signals will be reused in PS part, or implemented through PL pins
    - Two SPI (can be implemented through PL pins)
    - ADC (one independent differential ADC, 16-channel ADC brought out through PL pins)
    - One SDIO

OS Support

  • Linux 4.14.0


Other MYIR's Xilinx Products

http://www.myirtech.com/xilinxseries.asp

Z-turn Board Single Board Computer (based on Zynq-7010 / 7020)

Z-turn Lite Single Board Computer (based on Zynq-7007S / Zynq-7010)

MYD-C7Z015 Development Board (MYC-C7Z015 CPU Module as core board)

MYD-Y7Z010/20 Development Board (MYC-Y7Z010/20 CPU Module as core board)

MYD-Y7Z010/20-V2 Development Board (MYC-Y7Z010/20-V2 CPU Module as core board)

MYD-CZU3EG Development Board (MYC-CZU3EG CPU Module as core board)

MYD-CZU4EV Development Board (MYC-CZU4EV CPU Module as core board)

FZ3 Card - deep learning accelerator card (based on Xilinx Zynq UltraScale+ ZU3EG MPSoC)

VECP Starter Kit - a complete Vision Edge Computing Platform (based on Xilinx Zynq UltraScale+ ZU3EG MPSoC)




Hardware Features

The Zynq™-7000 family of devices combines the software programmability of a Processor with the hardware programmability of an FPGA, resulting in unrivaled levels of system performance, flexibility, scalability while providing system benefits in terms of power reduction, lower cost with fast time to market. Unlike traditional SoC processing solutions, the flexible programmable logic of the Zynq-7000 devices enables optimization and differentiation, allowing designers to add peripherals and accelerators to adapt to a broad base of applications.


The Zynq-7000 AP SoC leverages the 28nm scalable optimized programmable logic used in Xilinx’s 7 series FPGAs. Each device is designed to meet unique requirements across many use cases and applications. The Z-7010, Z-7015, and Z-7020 leverage the Artix®-7 FPGA programmable logic and offer lower power and lower cost for high-volume applications. The Z-7030, Z-7035, Z-7045, and Z-7100 are based on the Kintex®-7 FPGA programmable logic for higher-end applications that require higher performance and high I/O throughput.

ZYNQ-7000 Device Family



Zynq-7000 Devices



MYC-C7Z010/20-V2 Function Block Diagram



Dimensions of MYC-C7Z010/20-V2 CPU Module





Software Features

The MYC-C7Z010/20-V2 CPU Module is capable of running Linux 4.14.0. MYIR provides software package in product disk along with the goods delivery. The software package features as below:

Item

Features

Description

Remark

Cross compiler

gcc 4.6.1

gcc version 4.6.1 (Sourcery CodeBench Lite 2011.09-50)

Boot program

BOOT.BIN

First boot program including FSBL, bitstream

Source code provided

u-boot

Secondary boot program

Source code provided

Linux Kernel

Linux 4.14.0

Customized kernel for MYD-C7Z010/20-V2

Source code provided

Drivers

USB Host

USB Host driver

Source code provided

Ethernet

Gigabit Ethernet driver

Source code provided

MMC/SD/TF

MMC/SD/TF card driver

Source code provided

CAN

CAN driver

Source code provided

LCD Controller

XYLON LCD driver

Source code provided

HDMI

HDMI (SII902X chip) driver

Source code provided

Button

Button driver

Source code provided

UART

UART driver

Source code provided

LED

LED driver

Source code provided

GPIO

GPIO driver

Source code provided

QSPI

QSPI Flash S25FL256S driver

Source code provided

RTC

DS3231 RTC driver

Source code provided

Resistive Touch

TSC2007 resistive touch screen driver

Source code provided

Capacitive Touch

FT5X0X capacitive touch screen driver

Source code provided

ADC

ADC driver

Source code provided

File System

Ramdisk

Ramdisk system image

Rootfs.tar

Tar file







Relative Download and Links


You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.

1 Xilinx Zynq-7000 Overview 658 KB
2 MYC-C7Z010/20-V2 CPU Module Overview 557 KB
3 MYC-C7Z010/20-V2 Expansion Connectors Pin-out description 1.14 MB
4 Track length of MYC-C7Z010/20-V2 CPU Module
18 KB

5 MYD-C7Z010/20-V2 Development Board Overview
667 KB



MYC-C7Z010/20-V2 CPU Module Top-view



MYC-C7Z010/20-V2 CPU Module Bottom-view


MYD-C7Z010/20-V2 Development Board





Price and Ordering

Item

Part No.

Packing List

Unit Price
(FOB Shenzhen)

Ordering

MYC-C7Z010-V2

CPU Module

MYC-C7Z010-V2-4E1D-667-C

(commercial grade)

- One MYC-C7Z010-V2 Module

USD129
MYC-C7Z010-V2-4E1D-667-I

(industrial grade)

- One MYC-C7Z010-V2 Module
USD139

MYC-C7Z020-V2

CPU Module

MYC-C7Z020-V2-4E1D-766-C

(commercial grade)

- One MYC-C7Z020-V2 Module USD149
MYC-C7Z020-V2-4E1D-766-I

(industrial grade)

- One MYC-C7Z020-V2 Module USD169

MYD-C7Z010-V2

Development Board


MYD-C7Z010-V2-4E1D-667-C
(commercial grade)

- One MYD-C7Z010-V2 board
- One 1.5m cross Ethernet cable
- One DB9 UART to USB cable
- One HDMI cable
- One 12V/1.25A Power adapter
- One 16GB TF Card
- One product disk
(including user manual,
base board schematic in PDF format,
datasheets and software package)

USD279

MYD-C7Z010-V2-4E1D-667-I
(industrial grade)
USD299

Development Board


MYD-C7Z020-V2-4E1D-766-C

(commercial grade)

- One MYD-C7Z020-V2 board
- One 1.5m cross Ethernet cable
- One DB9 UART cable
- One HDMI cable

- One 12V/1.25A Power adapter

- One 16GB TF Card

- One product disk
(including user manual,
base board schematic in PDF format,
datasheets and software package)
USD299
MYD-C7Z020-V2-4E1D-766-I

(industrial grade)

USD329

Note:

1. One MYD-C7Z010/20-V2 Development Board includes one CPU module MYC-C7Z010/20-V2 mounted on the base board by default. If you need more CPU module, you can order extra ones.

2. Discount is available for mass orders. Please contact MYIR for inquires.

3. The boards of commercial grade can work in temperature ranging from 0~70 Celsius. The boards of industrial grade can work in temperature ranging from -40~85 Celsius.

4. We accept custom design based on the MYD-C7Z010/20-V2, whether reducing, adding or modifying the existing hardware according to customer’s requirement.

5. Customer may have used V1 version (MYD-C7Z010/20) before, V2 version is fully compatible with V1 version but using different ethernet PHY chips.
