          Products >  CPU Modules >  MYC-SAM9X5 Atmel Series > MYC-SAM9X5 CPU Module

MYC-SAM9X5 CPU Module

MYC-SAM9X5 CPU Module

- 400MHz Atmel AT91SAM9X5 Series ARM926EJ-STM Processors
- 128MB DDR2 SDRAM
- 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM
- On-board Ethernet PHY
- 1.8V DDR2 SO-DIMM 200-pin Expansion Connector
- Fully Compatible with Atmel's SAM9X5-EK Official Board
- Ready-to-Run Linux 2.6.39 and Android 2.3.5 Controller Board
- Provided with Complete MDK-ARM Sample Codes



Description

Measuring only 67.6mm by 35mm, MYIR’s MYC-SAM9X5 series CPU Modules are highly-integrated low-cost controller boards for industrial and embedded applications. The modules are based on 400MHz Atmel AT91SAM9x5 series processors: SAM9G15, SAM9G25, SAM9G35, SAM9X25 and SAM9X35. The module has 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM and Ethernet PHY on board and is equipped with one DDR2 SO-DIMM 200-pin connector to bring out all the I/O signals from the CPU Module. It is a Linux and Android ready-to-run module and supports -40 to +85 Celsius Extended Temperature Operation for Industrial Applications.


The MYC-SAM9X5 CPU Modules have five models for selections:

MYC-SAM9G15 CPU Module for Atmel AT91SAM9G15

MYC-SAM9G25 CPU Module for Atmel AT91SAM9G25

MYC-SAM9G35 CPU Module for Atmel AT91SAM9G35

MYC-SAM9X25 CPU Module for Atmel AT91SAM9X25

MYC-SAM9X35 CPU Module for Atmel AT91SAM9X35


They are sharing the same circuit design with only minor configuration settings. They are compatible with Atmel's official SAM9X5-EK and can work on SAM9X5-EK's base board directly. We can make a comparison for some main functions below:




We can see from above table if you need Ethernet, except MYC-SAM9G15, other four models all can support; if you need two CANs, two Ethernet but no need LCD, the MYC-SAM9X25 is a good choice; if you want to expose most features of this industrial module, the MYC-SAM9X35 has the most complete functions.


MYC-SAM9X5 CPU Module Top-view

MYC-SAM9X5 CPU Module Bottom-View


The MYC-SAM9X5 CPU Modules  can run Linux 2.6.39 and android 2.3.5 operating systems. MYIR also offers plenty of Keil MDK-ARM sample codes to enable your debugging capabilities. The modules come along with complete software packages as well as document to support customers’ development.


MYIR has designed a commonly-used base board for the MYC-SAM9X5 series CPU Modules which has extended most peripheral functions of the CPU by headers and connectors. The development board is called MYD-SAM9X5 which is an ideal platform for user evaluation and prototype. User can also create their own applications on this board and use it directly for their final products.

MYD-SAM9X5 Development Board


Product Features

  • Dimensions: 67.6mm x 35mm
  • PCB layers: 8-layer design
  • Working temperature: 0~70 Celsius or -40~85 Celsius
    Note:  Our products are delivered of commercial grade (0~70 Celsius) by default.  Anyhow the MYC-SAM9X5 board base on Atmel ARM9 processor can work for industrial applications working in harsh environment with working temperature ranging from -40 Celsius to 85 Celsius.  Please contact us for price and availability of products of industrial grade if you needed.
  • Processor: Atmel SAM9G15, SAM9G25, SAM9G35, SAM9X25, SAM9X35
    - 400MHz ARM926-based embedded microprocessor unit
    - 16KB data Cache,16KB instruction Cache, MMU
    - On-chip: 32KB SRAM, 64KB ROM
  • 128MB DDR2 SDRAM
  • 256MB NandFlash
  • 4MB DataFlash
  • 64KB EEPROM
  • One 10/100Mbps Ethernet PHY
  • One Power indicator (Red)
  • One user LED (Blue)
  • 1.8v DDR2 SO-DIMM 200-pin connector for bringing out signals
  • Linux 2.6.39 and Android 2.3.5 software package
  • Complete Keil's MDK-ARM sample codes


Hardware Specification

The Atmel® SAM9G and SAM9X embedded MPUs are high-performance, highly integrated processors built the good foundation of the Atmel® ARM926-based embedded MPU line. Running at 400 MHz, they are designed to complement the power of the ARM926 core; these flexible devices deliver a rich combination of peripherals including up to two Ethernet, two CAN, three USB ports and seven UARTS. Additional features include an integrated soft modem, TFT LCD controller and LPDDR/DDR2 memory support. A multilayer bus matrix architecture and multiple DMA channels ensure uninterrupted data transfer with minimum processor intervention. Low voltage, low power consumption and reduced system cost make these devices ideal for cost-sensitive machine-to-machine applications.


Item

MYC-SAM9G15

MYC-SAM9G25

MYC-SAM9G35

MYC-SAM9X25

MYC-SAM9X35

Processor

AT91SAM9G15

AT91SAM9G25

AT91SAM9G35

AT91SAM9X25

AT91SAM9X35

- 400 MHz ARM926EJ-S Processor
- DSP Instruction Extensions
- ARM Jazelle Technology
- 16 KB Data Cache, 16 KB Instruction Cache with MMU

- 32KB Internal SRAM
- External Bus Interface
- DMA Controller
- DDR2 Interface
- IIS audio interface
- 217 balls BGA
- Low power, Vcore 1.0V

Dimensions

67.6 x 35mm

PCB Layer

8-layer design

Power Supply

3.3V

Working Temp.

0~70 Celsius or -40~85 Celsius

External Memory

128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM

RTC

32.768kHz crystal for RTC clock

LED

One Power Indicator (Red)

One User LED (Blue)

Expansion Interface

1.8V DDR2 SO-DIMM 200-pin connector brings out below peripheral signals:

Note: The resources brought out from the expansion interfaces may be multiplexed with others.

Ethernet

0

1

1

2

1

CAN

0

0

0

2

2

LCD

1

0

1

0

1

Serial Ports

6

7

6

7

6

MMC/SD

2

USB

3

ADC

12-channel 10-bit ADC

SPI

2

TWI

2

PWM

4 x 16-bit PWM

GPIOs

Up to 105 GPIOs can be used


MYD-SAM9X5 Development Board Block Diagram



Dimension Chart of MYC-SAM9X5


Software Features

The MYC-SAM9X5 is a Linux and Android ready-to-run controller board. MYIR offers software packages along with the module. Many peripheral drivers are provided in source code to help customers quickly start their own development and create their own applications. MYIR also offers plenty of Keil's MDK-ARM sample codes to enable your debugging capabilities.The software features are summarized as below:


OS

Item

Features

Description

Linux

Boot

Boot Strap

First boot program (source code available)

u-boot

Secondary boot program (source code available)

Boot Mode

Boot Linux from NAND Flash

Image update

Support programming kernel image into Nand Flash through USB

File system update

Support programming file system into Nand Flash through USB

Kernel

Version

Linux 2.6.39 (source code available)

File system

Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS

File system

Format

UBIFS file system

Drivers

USB Host, USB Device, Ethernet, MMC/SD, CAN, RS485, NandFlash, TWI (I2C), SPI, WM8904 (Audio), LCD Controller, RTC, Touch-Screen, PWM, USART, LED
(source code available)

Graphical Library

QT

Already ported (source code available)

Android

Kernel

Version

Android 2.3.5

Drivers

Ethernet, Serial port driver (USART1, DBGU),

USB (USB_HOST*2,USB_OTG), SD card driver (Micro SD, MMC/SD),

SMD, SPI, TWI, DMA, LCD+touch (LCD and touch screen driver), GPIO driver

-

MDK Sample Code Bundle

Development tool

MDK-ARM 4.53

Sample code

getting-started, adc_adc10, adc_touchscreen, can, dma, lcd, periph_protect, pmc_clock_switching, pwm, ssc_dma_audio, twi_eeprom, usart_serial, emac0, emac1, hsmci_multimedia_card, hsmci_sdcard, smc_nandflash, spi_serialflash, usb_audio_looprec, usb_cdc_serial, usb_core, usb_hid_keyboard, usb_hid_mouse, usb_hid_msd, usb_hid_transfer, usb_iad_cdc_cdc, usb_iad_cdc_hid, usb_iad_cdc_msd, usb_massstorage


1 ATMEL SAM9G15 Datasheet 8.02 MB
2 ATMEL SAM9G25 Datasheet 5.84 MB
3 ATMEL SAM9G35 Datasheet 8.27 MB
4 ATMEL SAM9X25 Datasheet 7.6 MB
5 ATMEL SAM9X35 Datasheet 8.6 MB
6 MYD-SAM9X5 Development Board Overview 1.41 MB
7 MYC-SAM9X5 CPU Module Overview 741 KB
8 Build Linux Environment Based on Virtualbox 1.77 MB
9 Signals Rounted to SO-DIMM 200-pin Connector
489 KB





MYC-SAM9X5 Top-view

MYC-SAM9X5 Bottom-view

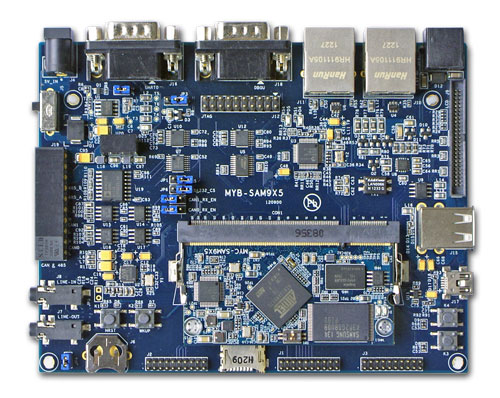

MYD-SAM9X5 Development Board Top-view

MYD-SAM9X5 Development Board Bottom-view

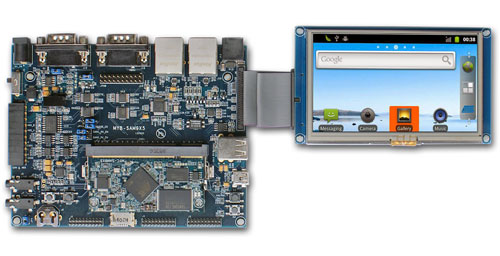

MYD-SAM9X5 Development Board Connect with LCD

Price and Ordering

Item

Part No.

Unit Price

Ordering

MYC-SAM9G15 CPU Module

MYC-SAM9G15

USD68

MYC-SAM9G25 CPU Module

MYC-SAM9G25

USD68

MYC-SAM9G35 CPU Module

MYC-SAM9G35

USD68

MYC-SAM9X25 CPU Module

MYC-SAM9X25

USD68

MYC-SAM9X35 CPU Module

MYC-SAM9X35

USD68

SO-DIMM 200-pin socket (optional)

MY-SODIMM200

USD5

Note:

1. Discount is available for mass orders. Please contact MYIR for inquiries.


2. All prices above are for boards of commercial grade (0~70 Celsius). If customer needs boards of industrial grade (-40~85 Celsius), or you may need boards with optional 256MB DDR2 SDRAM version, please inquiry MYIR for availability and prices.



Packing List

NO. Item Qty Description
1 MYC-SAM9X5 CPU Module 1pc MYC-SAM9G15/MYC-SAM9G25/MYC-SAM9G35/MYC-SAM9X25/MYC-SAM9X35

2

DVD 1pc one product DVD disk
