          Products >  CPU Modules >  MYC-YA15XC-T (ST STM32MP151A) > MYC-YA15XC-T CPU Module

MYC-YA15XC-T CPU Module

MYC-YA15XC-T CPU Module

- ST STM32MP1 MPU based on 650MHz Single or Dual Arm Cortex-A7 and 209MHz Cortex-M4 Cores
- 256MB/512MB DDR3L, 256MB Nand Flash/4GB eMMC Flash, 32KB EEPROM
- Power Management IC (PMIC)
- 1.0mm pitch 148-pin Stamp Hole Expansion Interface
- Supports Running Linux OS



Measuring only 39mm by 37mm, the MYC-YA15XC-T CPU Module is MYIR’s another System-on Module (SoM) based on ST STM32MP1 series processors after the first release of the MYC-YA157C CPU Module, The new MYC-Y157XC-T module has integrated the STM32MP151AAC3T processor by default and a dedicated Power Management IC STPMIC1 also from STMicroelectronics. It has onboard DDR3L, Nand Flash or eMMC and 32KB EEPROM. A number of peripherals and IO signals are brought out through 1.0 mm pitch 148-pin stamp-hole (Castellated-Hole) expansion interface to make the module an excellent embedded controller for applications like industrial control, consumer electronics, smart home, medical and etc. The MYC-YA15XC-T is running Linux with provided 5.4.31 kernel and many drivers in source code.


MYC-YA15XC-T CPU Module (delivered with shielding cover by default)


The MYD-YA15XC-T development board is designed based on the MYC-YA15XC-T CPU Module and has extended various peripherals to the base board through connectors including Debug serial port, USB Type-C DRP, USB2.0 HOST, Gigabit Ethernet, Micro SD Card Slot, LCD, Camera, etc. A number of IO signals are brought out through pin headers as well. The MYD-YA15XC-T development board is delivered with one Quick Start Guide, one USB Type-C cable, one DC power jack plug adapter and one 5V/2A power adapter to enable users to start rapid development when getting the board out-of-box. MYIR also offers MY-CAM011B Camera Module, MY-RGB2HDMI Module, MY-WF005S WiFi/BT Module, MY-WIREDCOM RPI Module (RS232/RS485/CAN) and MY-TFT070CV2 LCD Module as options for the board.


MYD-YA15XC-T Development Board Top-view


MYD-YA15XC-T Development Board Bottom-view

Features

Mechanical Parameters

  • Dimensions: 39mm x 37mm
  • PCB Layers: 10-layer design
  • Power supply: 5V/0.5A
  • Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)

Processor

  • STMicroelectronics STM32MP151AAC3 Microprocessor (STM32MP153AAC3 and STM32MP157AAC3 are compatible and can be customized)
    The STM32MP1 series is available in 3 different lines which are pin-to-pin compatible:
    - STM32MP151: Single Cortex-A7 core up to @ 800 MHz, Cortex-M4 core @ 209 MHz
    - STM32MP153: Dual Cortex-A7 cores up to @ 800 MHz, Cortex-M4 core @ 209 MHz and CAN FD
    - STM32MP157: Dual Cortex-A7 cores up to @ 800 MHz, Cortex-M4 core @ 209 MHz, 3D GPU, DSI display interface and CAN FD

Memory and Storage

  • 256MB DDR3L, 256MB Nand Flash / 512MB DDR3L, 4GB eMMC Flash
  • 32KB EEPROM

Peripherals and Signals Routed to Pins

  • Power Management IC (STPMIC1APQR)
  • 1.0mm pitch 148-pin stamp hole expansion interface
    - 8 x Serial ports
    - 5 x I2C
    - 4 x SPI
    - 16 x ADC
    - 2 x USB Host or 1 x USB Host plus 1 x USB OTG
    - 2 x SDIO
    - 1 x RGMII
    - 2 x CAN
    (only for STM32MP153 and STM32MP157)
    - 5 x LPTIM and 10 TIM

    1 x RGB Interface (supports 16-/18-/24-bit, resolution up to 1366 x 768 @60fps)
    - Up to 109 x GPIOs

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.

OS Support

  • Linux 5.4.31



Other MYIR's ST Products

http://www.myirtech.com/stseries.asp

MYD-YA157C Development Board (MYC-YA157C CPU Module as core board)






Hardware Specification

The MYC-YA15XC-T CPU Module is using STMicroelectronics STM32MP151AAC3 Microprocessor with 12 x 12 mm, 0.5 mm pitch, TFBGA361 package which is among the STM32MP1 Series. The STM32MP1 series is based on a heterogeneous single or dual Arm Cortex-A7 and Cortex-M4 cores architecture, strengthening its ability to support multiple and flexible applications, achieving the best performance and power figures at any time. The Cortex-A7 core provides access to open-source operating systems (Linux/Android) while the Cortex-M4 core leverages the STM32 MCU ecosystem. It is available in 3 different lines which are pin-to-pin compatible:

  • STM32MP157: Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz, 3D GPU, DSI display interface and CAN FD
  • STM32MP153: Dual Cortex-A7 cores @ 650 MHz, Cortex-M4 core @ 209 MHz and CAN FD
  • STM32MP151: Single Cortex-A7 core @ 650 MHz, Cortex-M4 core @ 209 MHz
    Each line comes with a security option (cryptography & secure boot)


STM32MP1 Series Processsors



STM32MP15X Block Diagram


MYC-YA15XC-T CPU Module Function Block Diagram


MYC-YA15XC-T CPU Module Dimension Chart




Software Features

The MYC-YA15XC-T CPU Module is running Linux with provided 5.4.31 kernel and many drivers in source code.

Item

Features

Description

Source Code

Bootstrap program

TF-A-2.2

Arm Trusted Firmware

YES

Bootloader

U-boot-2020.01

Kernel bootstrap

YES

Linux kernel

Linux-5.4.31

Customized based on ST kernel_5.4.31 version for MYD-YA15XC-T

YES

Drivers

NAND

Nand Flash driver

YES

MMC

eMMC driver

YES

USB Host

USB Host driver

YES

USB OTG

USB OTG driver

YES

I2C

I2C driver

YES

SPI

SPI driver

YES

Ethernet

10M/100M/1000M Ethernet driver

YES

RS232/RS485/Uart

Serial driver

YES

LCD

LCD driver, supports MYIR’s 7-inch LCD with 800 x 480 pixels resolution

YES

Touch

Capacitive touch screen driver

YES

RTC

RTC driver

YES

GPIO key

Key driver

YES

GPIO LED

LED driver

YES

CAN

CAN Bus driver

YES

HDMI

HDMI driver

YES

WiFi & BT

WiFi/BT driver (SDIO)

YES

File system

myir-image-full

Full-featured file system with MEasy HMI V2.0

YES

myir-image-core

Simplified system with core features

YES

Tools

STM32CubeProgrammer

ST programmer software

BIN

STM32CubeMX

ST configuration integration tool

BIN

STM32CubeIDE

ST development tool

BIN

Applications

GPIO LED

LED example

YES

GPIO KEY

KEY example

YES

NET

TCP/IP Socket C/S example

YES

RTC

RTC example

YES

RS232

RS232 example

YES

RS485

RS485 example

YES

CAN

CAN example

YES

LCD

LCD Display example

YES

Camera

Camera Display example

YES

UART

UART example

YES

HMI 2,0

MYiR-MEasy_hmi 2.0

YES

Compiler Tool Chain

Cross compiler

arm-ostl-linux-gnueabi-gcc 9.3.0

BINARY

Yocto Project™

Yocto

Dunfell 3.1

YES


















































MYD-YA15XC-T Software Features




Relative Download and Links

You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.


1 MYC-YA15XC-T CPU Module Overview 869 KB
2 ST STM32MP15X Datasheet 3.44 MB
3 MYC-YA15XC-T User Mnaual 1.08 MB
4 MYD-YA15XC-T Development Board Overview
1.04 MB

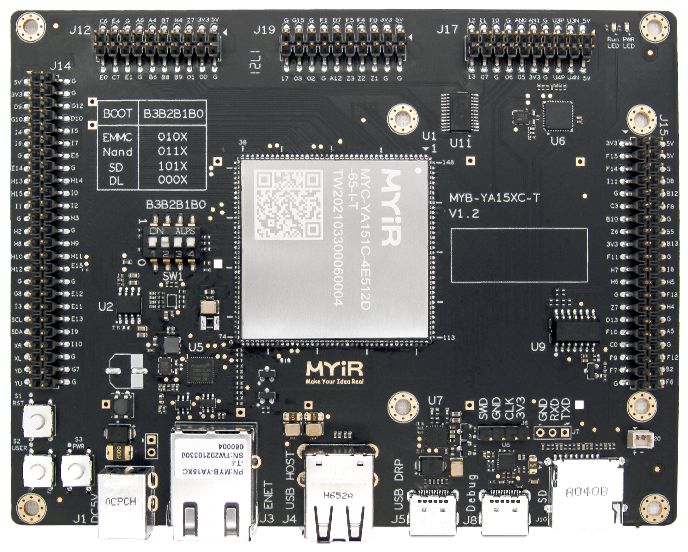

MYD-YA15XC-T Development Board Top-view

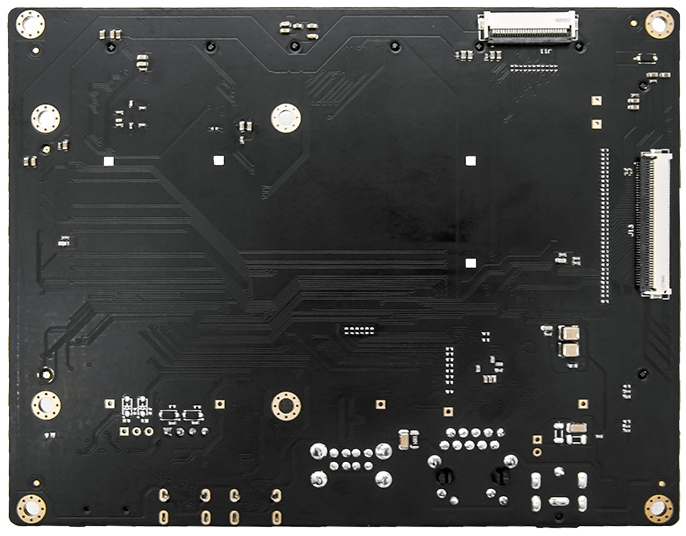

MYD-YA15XC-T Development Board Bottom-view







Price and Ordering

Item

Part No.

Packing List

Unit Price

Ordering

MYC-YA15XC-T
CPU Module

MYC-YA151C-256N256D-65-C-T

One MYC-YA151C-T Module

USD20

MYC-YA151C-256N256D-65-I-T
One MYC-YA151C-T Module

USD22


MYC-YA151C-4E512D-65-C-T
One MYC-YA151C-T Module
USD27
MYC-YA151C-4E512D-65-I-T
One MYC-YA151C-T Module
USD31

MYD-YA15XC-T

Development Board

MYD-YA151C-256N256D-65-I-T

- One MYD-YA15XC-T board
(including MYC-YA15XC-T)
- One USB Type-C cable
- One 5V/2A Power adapter
- One DC power jack adapter
- One Quick Start Guide

USD69
MYD-YA151C-4E512D-65-I-T
USD79

MY-RGB2HDMI

RGB to HDMI Module

MY-RGB2HDMI RGB to HDMI Module USD19

MY-WIREDCOM

RPI Module

MY-WIREDCOM
RPI Mofule for extension

of RS232/RS485/CAN

USD25

MY-WF005S

WiFi/BT Module

MY-WF005S
WiFi/Bluetooth Module USD19

MY-CAM011B

Camera Module

MY-CAM011B Camera Module USD25

MY-TFT070CV2
7-inch LCD Module

with capacitive touch screen

USD89

Note:

1. One MYD-YA15XC-T Development Board includes one CPU module MYC-YA15XC-T mounted on the base board. If you need more CPU module, you can order extra ones.

2. Discount is available for mass orders. Please contact MYIR for inquiries.

3. We accept custom design based on the MYD-YA15XC-T, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
