MYC-SAM9X5-V2 CPU Module

MYC-SAM9X5-V2 CPU Module

- 400MHz Atmel AT91SAM9X5 Series ARM926EJ-STM Processors
- 128MB DDR2 SDRAM
- 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM
- On-board Ethernet PHY
- Two 2.0mm pitch 70-pin Expansion Connectors
- Ready-to-Run Linux 2.6.39 and Android 2.3.5 Controller Board
- Provided with Complete MDK-ARM Sample Codes



Description

Measuring only 72mm by 50mm, MYIR’s MYC-SAM9X5-V2 series CPU Modules are highly-integrated low-cost controller boards for industrial and embedded applications. The modules are based on 400MHz Atmel AT91SAM9x5 series ARM9 processors: SAM9G15, SAM9G25, SAM9G35, SAM9X25 and SAM9X35. The modules include 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM and Ethernet PHY. They have two 2.0mm pitch 70-pin connectors to provide an interface to bring out all the I/O signals from the CPU Module. They are Linux and Android ready-to-run modules and support -40 to +85 Celsius Extended Temperature Operation for Industrial Applications.


The MYC-SAM9X5-V2 CPU Modules have five models for selections:

MYC-SAM9G15-V2 CPU Module for Atmel AT91SAM9G15

MYC-SAM9G25-V2 CPU Module for Atmel AT91SAM9G25

MYC-SAM9G35-V2 CPU Module for Atmel AT91SAM9G35

MYC-SAM9X25-V2 CPU Module for Atmel AT91SAM9X25

MYC-SAM9X35-V2 CPU Module for Atmel AT91SAM9X35


The five MYC-SAM9X5-V2 CPU Modules are sharing the same circuit design with only minor configuration settings. We can see some main difference from below table:

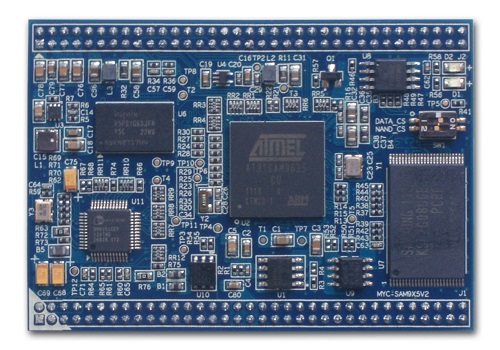

MYC-SAM9X5-V2 CPU Module Top-View


MYC-SAM9X5-V2 CPU Module Bottom-view

The MYC-SAM9X5-V2 modules come with Linux 2.6.39 and android 2.3.5 software packages, MDK-ARM sample codes bundle as well as document to support customers’ development. They are ideal controller board for your next embedded design.



MYIR has designed a commonly-used base board for the MYC-SAM9X5-V2 series CPU Modules which has extended most peripheral functions of the CPU by headers and connectors. The development platform is called MYD-SAM9X5-V2 development board, it is ideal for user evaluation and prototype. User can also create their own applications on this board and use it directly for their final products.

MYD-SAM9X5-V2 Development Board


Product Features

  • Dimensions: 72mm x 50mm
  • PCB layers: 6-layer design
  • Working temperature: 0~70 Celsius or -40~85 Celsius
    Note: Our products are delivered of commercial grade (0~70 Celsius) by default.  Anyhow the MYC-SAM9X5-V2 board based on Atmel ARM9 processor can work for industrial applications working in harsh environment with working temperature ranging from -40 Celsius to 85 Celsius.  Please contact us for price and availability of products of industrial grade if you needed.
  • Processor: Atmel SAM9G15, SAM9G25, SAM9G35, SAM9X25, SAM9X35
    - 400MHz ARM926-based embedded microprocessor unit
    - 16KB data Cache,16KB instruction Cache, MMU
    - On-chip: 32KB SRAM, 64KB ROM
  • 128MB DDR2 SDRAM
  • 256MB Nand Flash
  • 4MB Data Flash
  • 64KB EEPROM
  • 10/100Mbps Ethernet PHY
  • One Power indicator (Red)
  • One user LED (Blue)
  • Two 2.0mm pitch 70-pin connectors for bringing out signals
  • Linux 2.6.39 and Android 2.3.5 software package
  • MDK-ARM samples codes


Hardware Specification

The Atmel® SAM9G and SAM9X embedded MPUs are high-performance, highly integrated processors built the good foundation of the Atmel® ARM926-based embedded MPU line. Running at 400 MHz, they are designed to complement the power of the ARM926 core; these flexible devices deliver a rich combination of peripherals including up to two Ethernet, two CAN, three USB ports and seven UARTS. Additional features include an integrated soft modem, TFT LCD controller and LPDDR/DDR2 memory support. A multilayer bus matrix architecture and multiple DMA channels ensure uninterrupted data transfer with minimum processor intervention. Low voltage, low power consumption and reduced system cost make these devices ideal for cost-sensitive machine-to-machine applications.

Item

MYC-SAM9G15-V2

MYC-SAM9G25-V2

MYC-SAM9G35-V2

MYC-SAM9X25-V2

MYC-SAM9X35-V2

Processor

AT91SAM9G15

AT91SAM9G25

AT91SAM9G35

AT91SAM9X25

AT91SAM9X35

- 400 MHz ARM926EJ-S Processor
- DSP Instruction Extensions
- ARM Jazelle Technology
- 16 KB Data Cache, 16 KB Instruction Cache with MMU

- 32KB Internal SRAM
- External Bus Interface
- DMA Controller
- DDR2 Interface
- IIS audio interface
- Embedded ICE
- 217 balls BGA
- Low power, Vcore 1.0V

Dimensions

72 x 50mm

PCB Layer

6-layer design

Power Supply

3.3V

Working Temp.

0~70 Celsius or -40~85 Celsius

External Memory

128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM

RTC

32.768kHz crystal for RTC clock

LED

One Power Indicator (Red)

One User LED (Blue)

Expansion Interface

Two 2.0mm pitch 70-pin dip connectors bring out below peripheral signals:

Note: The resources brought out from the expansion interfaces may be multiplexed with others.

Ethernet

0

1

1

2

1

CAN

0

0

0

2

2

LCD

1

0

1

0

1

Serial Ports

6

7

6

7

6

MMC/SD

2

USB

3

ADC

12-channel 10-bit ADC

SPI

2

TWI

2

PWM

4 x 16-bit PWM

GPIOs

Up to 89 GPIOs can be used


MYD-SAM9X5-V2 Block Diagram


MYC-SAM9X5-V2 Dimension Chart

Software Features

The MYC-SAM9X5-V2 is a Linux and Android ready-to-run controller board. MYIR offers software packages along with the module. Many peripheral drivers are provided in source code to help customers quickly start their own development and create their own applications. MYIR also offers plenty of Keil's MDK-ARM sample codes to enable your debugging capabilities.The software features are summarized as below:


OS

Item

Features

Description

Linux

Boot

Boot Strap

First boot program (source code available)

u-boot

Secondary boot program (source code available)

Boot Mode

Boot Linux from NAND Flash

Image update

Support programming kernel image into Nand Flash through USB

File system update

Support programming file system into Nand Flash through USB

Kernel

Version

Linux 2.6.39 (source code available)

File system

Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS

File system

Format

UBIFS file system

Drivers

USB Host, USB Device, Ethernet, MMC/SD, CAN, RS485, NandFlash, TWI (I2C), SPI, WM8904 (Audio), LCD Controller, RTC, Touch-Screen, PWM, UART, LED
(source code available)

Graphical Library

QT

Already ported (source code available)

Android

Kernel

Version

Android 2.3.5

Drivers

Ethernet, Serial port driver (USART1, DBGU),

USB (USB_HOST*2,USB_OTG), SD card driver (Micro SD, MMC/SD),

SMD, SPI, TWI, DMA, LCD+touch (LCD and touch screen driver), GPIO driver

-

MDK Sample Code Bundle

Development tool

MDK-ARM 4.53

Sample code

getting-started, adc_adc10, adc_touchscreen, can, dma, lcd, periph_protect, pmc_clock_switching, pwm, ssc_dma_audio, twi_eeprom, usart_serial, emac0, emac1, hsmci_multimedia_card, hsmci_sdcard, smc_nandflash, spi_serialflash, usb_audio_looprec, usb_cdc_serial, usb_core, usb_hid_keyboard, usb_hid_mouse, usb_hid_msd, usb_hid_transfer, usb_iad_cdc_cdc, usb_iad_cdc_hid, usb_iad_cdc_msd, usb_massstorage, RS485, External GPIO, External UART, External RTC


Relative Download and Links

You can download relative chip datasheet, products datasheet, user manual, software package from below. Any inquiry, please contact MYIR.


1 ATMEL SAM9G15 Datasheet 8.02 MB
2 ATMEL SAM9G25 Datasheet 5.84 MB
3 ATMEL SAM9G35 Datasheet 8.27 MB
4 ATMEL SAM9X25 Datasheet 7.6 MB
5 ATMEL SAM9X35 Datasheet 8.6 MB
6 MYD-SAM9X5-V2 Development Board Overview 747 KB
7 MYC-SAM9X5-V2 CPU Module Overview 668 KB
8 Build Linux Environment Based on Virtualbox 1.77 MB

MYC-SAM9X5V2系列核心板

MYC-SAM9X5-V2 CPU Module Top-view


MYC-SAM9X5V2系列核心板背面图

MYC-SAM9X5-V2 CPU Module Bottom-view


MYC-SAM9X5V2系列核心板测试底板

MYD-SAM9X5-V2 Development Board

Price and Ordering


Item

Part No.

Unit Price

Ordering

MYC-SAM9G15-V2 CPU Module

MYC-SAM9G15-V2

USD68

MYC-SAM9G25-V2 CPU Module

MYC-SAM9G25-V2

USD68

MYC-SAM9G35-V2 CPU Module

MYC-SAM9G35-V2

USD68

MYC-SAM9X25-V2 CPU Module

MYC-SAM9X25-V2

USD68

MYC-SAM9X35-V2 CPU Module

MYC-SAM9X35-V2

USD68

Note:

1. Discount is available for mass orders. Please contact MYIR for inquiries.

2. All prices above are for boards of commercial grade (0~70 Celsius). If customer needs boards of industrial grade (-40~85 Celsius), please inquiry MYIR for availability and prices.

Packing List

NO. Item Qty Description
1 MYC-SAM9X5-V2 CPU Module 1pc MYC-SAM9G15-V2/MYC-SAM9G25-V2/MYC-SAM9G35-V2/
MYC-SAM9X25-V2/MYC-SAM9X35-V2

2

DVD 1pc one product DVD disk
