MYD-YG2UL Development board

MYIR is an authorized IDH partner of Renesas, welcome to use MYIR's Renesas series products!
We also offer ODM and OEM services, welcome your inquiry!

https://www.myirtech.com/renesasseries.asp

The MYC-YG2UL CPU Module is populated on the MYD-YG2UL Development Board through 1.0mm pitch 140-pin Castellated-Hole and 50-pin LGA interfaces. It is a highly-integrated SoM which combines the RENESAS RZ/G2UL processor, DDR3L, Memory Flash, 4KB EEPROM. The base board has brought out rich peripherals through connectors and headers such as RS232, RS485, two USB 2.0 HOST and one USB 2.0 OTG, two Gigabit Ethernet, one CAN, one Micro SD card slot, one M.2 Socket for USB based 4G/5G LTE Module with two SIM card holders and one USB2.0 based WiFi module. LCD interface, Camera interface, Audio input and output as well as an extension header.

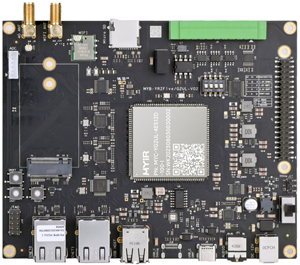

MYD-YG2UL Development Board (Top-view)

MYD-YG2UL Development Board (Bottom-view)

The MYD-YG2UL Development Board supports running Linux OS and is provided with streamlined core-image and full-featured image by Yocto as well as highly modular and highly automated OpenWrt image. MYIR also offers the kernel and driver source codes, Linux gateway demo and compilation tools to enable users to start their development rapidly and easily.

The MYD-YG2UL Development Board is delivered with Quick Start Guide, one USB to TTL serial cable, one 12V/2A power adapter and one DC Power jack adapter. MYIR also offers MY-CAM003M MIPI Camera Module, MY-LCD70TP-C 7 inch LCD Module and MY-WIREDCOM RPI Module (RS232/RS485/CAN) as add-on options for the board.

Features

Mechanical Parameters

• Dimensions: 150mm x 120mm (base board), 39mm x 37mm (CPU Module)
• PCB Layers: 6-layer design (base board) or USB Typpower supply, 10-ayer design (CPU Module)
• Power supply: +12V/2A (base board), 5V/1A (CPU Module)
• Working temperature: -40~85 Celsius (industrial grade)
  (WiFi Module: -20~70 Celsius)



The MYD-YG2UL Controller Board (MYC-YG2UL CPU Module)

MYC-YG2UL CPU Module Top-view and Bottom-view

Processor

• RENESAS RZ/G2UL processor (Type-1)
  - 1.0 GHz Single-core ARM Cortex-A55
  - 200 MHz ARM Cortex-M33
  - 16-bit DDR3L/DDR4-1600 (in line ECC)
  - MIPI CSI-2 (4 lanes) Camera Interface
  - Parallel Display Interface
  - 2 x Gigabit Ethernet


Memory

• 512MB DDR3L
• 4GB eMMC
• 4KB EEPROM

Peripherals and Signals Routed to Pins

• Power Management IC (RAA215300)

• 1.0mm pitch 140-pin Castellated-Hole and 50-pin LGA expansion interfaces
  - 2 x RGMII
  - 2 x USB 2.0
  - 5 x SCIF
  - 2 x SCI
  - 2 x CAN FD
  - 4 x I2C
  - 3 x SPI
  - 2 x ADC
  - 1 x RGB
  - 1 x MIPI CSI
  - 4 x SSI
  - Up to 82 GPIOs
  Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and pin-out description file.

The MYD-YG2UL Development Board Base Board

• 1 x Power Jack
• 1 x Power Switch
• Serial ports
- Debug serial port (TTL)
- 1 x RS232
- 1 x RS485

• USB
  - 2 x USB2.0 Host ports
  - 1 x USB2.0 OTG port
  - 1 x M.2 socket for USB based 4G/5G LTE Module
  - 1 x USB based WiFi Module
• 2 x SIM card slots
• 1 x Micro SD card slot
• 2 x Antenna Interfaces (one for WiFi and one for 4G/5G)
• 2 x 10/100/1000 Mbps Ethernet interface (RJ45)
• 1 x CAN interface
• 1 x JTAG interface
• Video Input
  - 1 x MIPI-CSI Interface (0.5mm pitch 24-pin FPC connector)
  Supports MYIR’s MY-CAM003M Camera Module through J2

• Video Output
  - 1 x RGB Display interface (J24, 40-pin 0.5mm pitch FPC connector)

  Supports MYIR’s MY-LCD70TP-C LCD Module with Capacitive Touch Screen through the LCD interface
• Audio Input and Output Interface

• 1 x 2.54mm 2 x 20-pin male expansion header
  (GPIO/I2C/UART/SPI/CAN, compatible with Raspberry PI standard 40-pin extension interface)
  Supports MYIR’s MY-WIREDCOM RPI Module to extend RS485, RS232 and CAN functions
• 3 x Buttons (one for Reset, one for Power On/Off and one for USER)

OS Support

• Linux 5.10

Other MYIR's Renesas Products

https://www.myirtech.com/renesasseries.asp

MYD-YG2LX Development Board (MYC-YG2LX CPU Module as core board, Renesas RZ/G2L)
