MY-ETH001 Gigabit Ethernet Module
The MY-ETH001 is a high-performance Gigabit Ethernet module developed by MYIR, designed to enable high-speed network communication. It is compatible with NXP’s FRDM-IMX91S development board and supports a data transmission rate of up to 1000Mbps (1Gbps). This module is ideal for applications in enterprise networks, data centers, industrial automation, and intelligent equipment.
USD8
The MY-ETH001 utilizes the Motorcomm YT8521SC-CA chip and complies with IEEE 802.3ab/802.3z standards. It supports adaptive rates of 10/100/1000 Mbps, allowing seamless integration into switches, routers, servers, industrial control equipment, or embedded systems. The module ensures stable and reliable high-speed data transmission, enhancing network performance. By incorporating the MY-ETH001, users can significantly shorten product development cycles and reduce development costs.
|
Item
|
Parameter
|
|
Rate
|
10/100/1000 Mbps fully adaptive,
Support automatic negotiation
|
|
Power supply
|
Core: 3.3V
|
|
I/O: 1.8V
|
|
Power consumption
|
Working status: Traffic@1000Mbps
|
<900mW
|
|
Working status: Link Down
|
<200mW
|
|
Temperature range
|
Commercial: 0°C to +70°C
|
|
Input interface
|
RGMII
|
|
Output interface
|
RJ45 interface
(with built-in transformer)
|
|
Dimensions
|
45mm x 60mm x 1.6mm
|
MY-ETH001 Specification

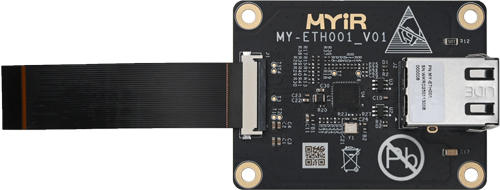

The MY-ETH001 is equipped with a 30-pin FPC cable featuring on-the-same-plane wiring for interfacing with the FRDM-IMX91S board. The PIN1 of the J1 interface on the MY-ETH001 module corresponds with the arrow marking on the silk screen and should be connected in sequence to the PIN1 of the J4 interface on the FRDM-IMX91S board, as indicated by the arrow marking on its silk screen.

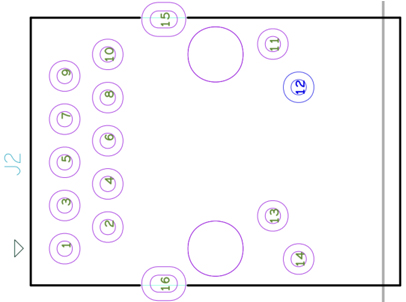

The MY-ETH001 Gigabit Ethernet module connects to the development board using its J1 connector via a Flexible Printed Circuit (FPC) connector. The J2 connector enables network connectivity through an RJ45 interface, which includes an integrated transformer. The pin assignments for the primary connectors are detailed in the accompanying figure.

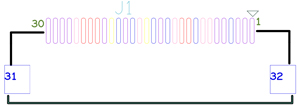

J1 Pin Sequence
|
Pin
|
Function
|
Signal Name
|
Description
|
|
1
|
Power 5V
|
VDD_5V
|
|
|
2
|
Power 3.3V
|
VDD_3V3
|
|
|
3
|
Power 3.3V
|
VDD_3V3
|
|
|
4
|
GND
|
GND
|
|
|
5
|
Bus data
|
I2C_SDA
|
|
|
6
|
Bus clock
|
I2C_SCL
|
|
|
7
|
ETH2 Data Receive 2
|
ENET2_RD2
|
|
|
8
|
ETH2 Data Receive 1
|
ENET2_RD1
|
|
|
9
|
GND
|
GND
|
|
|
10
|
ETH2 Data transmit 3
|
ENET2_TD3
|
|
|
11
|
ETH2 Data transmit 2
|
ENET2_TD2
|
|
|
12
|
ETH2 Data Receive 0
|
ENET2_RD0
|
|
|
13
|
GND
|
GND
|
|
|
14
|
Clock input
|
CSI_MCLK
|
24Mhz
|
|
15
|
GND
|
GND
|
|
|
16
|
ETH2 Receive clock
|
ENET2_RXC
|
|
|
17
|
ETH2 Data reception control bit
|
ENET2_RX_CTL
|
|
|
18
|
GND
|
GND
|
|
|
19
|
ETH2 MDIO clock
|
ENET2_MDC
|
|
|
20
|
GND
|
GND
|
|
|
21
|
ETH2 Send clock
|
ENET2_TXC
|
|
|
22
|
ETH2 MDIO Data
|
ENET2_MDIO
|
|
|
23
|
ETH2 Data reception control bit
|
ENET2_TX_CTL
|
|
|
24
|
ETH2 Data transmit 1
|
ENET2_TD1
|
|
|
25
|
ETH2 Data transmit 0
|
ENET2_TD0
|
|
|
26
|
ETH2 Data Receive 3
|
ENET2_RD3
|
|
|
27
|
GPIO Control
|
EXT_GPIO27
|
3.3V
|
|
28
|
GPIO Control
|
EXT_GPIO28
|
3.3V
|
|
29
|
GPIO Control
|
EXT_GPIO29
|
3.3V
|
|
30
|
GPIO Control
|
EXT_GPIO30
|
3.3V
|
J1 Pin Definition
J2 Pin Sequence
|
Pin
|
Function
|
Signal Name
|
Description
|
|
1
|
ET2 differential signal 0 +
|
ET2_TRP0
|
|
|
2
|
ET2 differential signal 0 -
|
ET2_TRN0
|
|
|
3
|
ET2 differential signal 1 +
|
ET2_TRP1
|
|
|
4
|
ET2 differential signal 1 -
|
ET2_TRN1
|
|
|
5
|
ET2 CT1
|
CT1
|
|
|
6
|
ET2 CT2
|
CT2
|
|
|
7
|
ET2 differential signal 2 +
|
ET2_TRP2
|
|
|
8
|
ET2 differential signal 2-
|
ET2_TRN2
|
|
|
9
|
ET2 differential signal 3+
|
ET2_TRP3
|
|
|
10
|
ET2 differential signal 3-
|
ET2_TRN3
|
|
|
11
|
ET2 LED1 Data communication
|
ET2_LED1
|
|
|
12
|
GND
|
GND
|
|
|
13
|
ET2 LED2 Connection status
|
ET2_LED2
|
|
|
14
|
GND
|
GND
|
|
|
15
|
GND_EARTH
|
GND_EARTH
|
|
|
16
|
GND_EARTH
|
GND_EARTH
|
|
J2 Pin Definition
|
