MAC-B5760 AI Edge IPC Box
|
- RK3576 Processor based on 2.2GHz Quad-core ARM Cortex-A72 and 1.8GHz Quad-core ARM Cortex-A53
- Equipped with a 6 TOPS NPU Accelerator and a 3D GPU
- 8GB LPDDR5, 64GB eMMC, 4KB EEPROM
- 1x Debug Port, 2x Gigabit Ethernet, 4x USB 3.0, 1x MicroSD, 1x SIM Card Slot
- Onboard WiFi/Bluetooth Module and Mini-PCIe Slot for 4G/5G Module
- Onboard M.2 (PCIe) M-Key 2280 Slot for SSD and Computing Power Card
- Supports HDMI and Mini DP Display, and Audio In/Out
- Supports Linux (Yocto), Debian
- Rugged and Fanless Enclosure Design
- Operating Temperature 0°C ~ 70°C
|
The MAC-B5760 AI Edge IPC Box is a high-performance industrial computer launched by MYIR. It is built around the Rockchip RK3576 processor and housed in a rugged aluminum alloy enclosure purpose-built for AI edge computing scenarios.
Powered by the RK3576 SoC, it integrates an octa-core CPU (4x Cortex-A72@2.2GHz + 4x Cortex-A53@1.8GHz) and a 6 TOPS NPU for AI acceleration. It is coupled with high-speed LPDDR5 memory to deliver strong computing and AI processing capabilities. It supports the expansion of AI Accelerator Card and M.2 SSD storage via onboard M.2 (PCIe) M-KEY 2280 slot, with flexible storage configurations including eMMC and UFS. Additionally, this IPC Box is equipped with rich peripheral interfaces including 2x Gigabit Ethernet, 4x USB 3.0, HDMI and Mini DP display outputs, a 3.5mm Audio Input and Output jack, etc. It supports WiFi/Bluetooth wireless communication and 4G/5G cellular communication via an onboard mini PCIe slot and a Micro SIM card slot.
MYIR offers complete software resources for the MAC-B5760, covering system images for Linux (Yocto) and Debian, U-Boot, Linux kernel 6.1, and full peripheral drivers all provided in source code, along with development tools. Comprehensive technical documents including product manuals, user guides, and development references are provided to support customers with secondary development, shorten project cycles, and accelerate time-to-market for custom AI applications such as visual analysis, robotics, autonomous driving control, and smart retail.

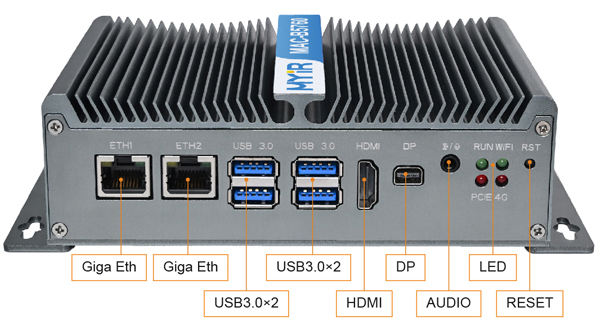

MAC-B5760 AI Edge IPC Box Front View

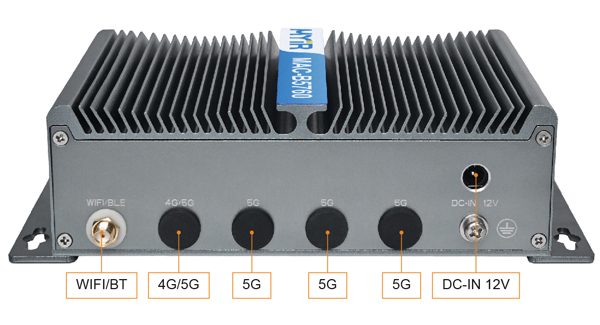

MAC-B5760 AI Edge IPC Box Rear View

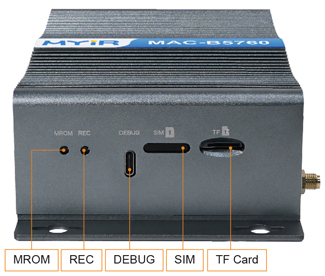

MAC-B5760 AI Edge IPC Box Side View
Hardware Features
|
Features
|
Description
|
|
SoC
|
Rockchip RK3576 processor
- Octa-core Arm processor with 4x Cortex-A72 cores at 2.2 GHz, 4x Cortex-A53 cores at 1.8 GHz
- Arm Cortex-M0 MCU at 400MHz for user application
- Arm Mali-G52 MC3 GPU
- 6 TOPS NPU supports INT4/8/16/FP16/BF16/TF32
- Supports up to 8K@30fps or 4K@120fps video decoding (H.265/HEVC, VP9, AVS2, and AV1) and video encoder up to 4K@60fps video encoding (H.265 and H.264)
|
|
Memory
|
8GB LPDDR5 (4GB available as a customization option)
|
|
Storage
|
64GB eMMC (32GB or 128GB UFS available as customization options)
4KB EEPROM
1x Micro SD card slot
1x M.2 (PCIe) M-Key 2280 slot for SSD storage and AI computing card expansion
|
|
Communication
|
1x Type-C USB-UART Debug Interface
4x USB 3.0 Host Type-A Ports
2x 10/100/1000Mbps Gigabit Ethernet Interfaces
Onboard WiFi/BT Module (complies with IEEE 802.11a/b/g/n/ac standard, supports WiFi 6+BT V5.4) with 1x WiFi/BT antenna interface
1x Mini-PCIe Slot for 4G/5G Module, paired with 1x Micro SIM card slot
|
|
Multimedia
Interfaces
|
1x HDMI (supports up to 4K@120Hz resolution)
1x Mini DisplayPort (DP) (supports up to 4K@60Hz resolution)
1x 3.5mm Audio Jack (headphone output and microphone input)
|
|
Others
|
External watchdog timer
1x External RTC (requires external 3.3V battery)
Supercapacitor with 5-second holdup time after power loss
1x Onboard buzzer
4x LEDs (Power/System, WiFi, PCIe SSD, 4G/5G)
3x Buttons (Reset, RECOVERY, MASKROM)
|
|
Power supply
|
12VDC/5A Jack input
|
|
Dimensions
|
150mm x 101mm x 47mm (without mounting bracket)
177mm x 101mm x 49mm (with mounting bracket)
|
|
Working Temp.
|
0°C ~+70°C
|
Net Weight
|
575g
|
|
OS
|
Linux (Yocto), Debian
|
|
Installation
|
Desktop/Wall mounted (can be customized for Rail mounted)
|
Software Features
The MAC-B3576 offers supports for Linux and Debian operating systems and is equipped with comprehensive software packages. To assist clients in speeding up their projects, the kernel and numerous peripheral drivers are provided in source code format. Below is a brief overview of the key software feature:
|
Item
|
Features
|
Description
|
Source Code
|
|
Bootloader
|
Pre-loader
|
First bootloader
|
NO
|
|
U-boot
|
Second bootloader uboot_2017.09
|
YES
|
|
Kernel
|
Linux kernel
|
Customized based on Rockchip's official Linux kernel 6.1
|
YES
|
|
Drivers
|
EEPROM
|
EEPROM (BL24C32F) driver
|
YES
|
|
USB
|
USB driver
|
YES
|
|
Ethernet
|
Ethernet (YT8531SH) driver
|
YES
|
|
HDMI
|
HDMI driver
|
YES
|
|
DP
|
DP driver
|
YES
|
|
MIPI DSI
|
MIPI DSI driver
|
YES
|
|
Audio
|
ES8390 audio driver
|
YES
|
|
RTC
|
RX8025 driver
|
YES
|
|
WIFI/BT
|
WiFi/Bluetooth (BL-M8800DS7-80I) driver
|
YES
|
File system
|
myir-image-mac-b5760-debian
|
Image built based on Debian system
|
YES
|
myir-image-mac-b5760-yocto
|
Linux image built with Yocto
|
YES
|
myir-image-mac-b5760-yocto-preempt-rt
|
Rt Linux image built with Yocto
|
YES
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
The MAC-B5760 AI Edge IPC Box Overview
|
1.08 MB
|
|
Price and Ordering
|
Item
|
Packing List
|
Unit Price
|
Ordering
|
|
MAC-B5760 AI Edge IPC Box
(Part No.: MAC-B5760-CC810000)
|
- One MAC-B5760 AI Edge IPC Box
(8GB LPDDR5 + 64GB eMMC)
- One Quick Start Guide
- One WiFi/Bluetooth antenna
- One 12V/5A Power adapter
|
USD299
|
|
|
MAC-B5760 AI Edge IPC Box
(Part No.: MAC-B5760-CC81000C)
|
- One MAC-B5760 AI Edge IPC Box
(8GB LPDDR5 + 64GB eMMC)
- One Quick Start Guide
- One WiFi/Bluetooth antenna
- One 12V/5A Power adapter
- One AI Accelerator Card (20 TOPS, RM1828MC0-F)
|
USD599
|
|
|
