MIC-B5760 IPC Box
|
- RK3576J Processor based on 1.6GHz Quad-core ARM Cortex-A72 and 1.4GHz Quad-core ARM Cortex-A53
- Equipped with a 6 TOPS NPU Accelerator and a 3D GPU
- 4GB LPDDR5, 32GB eMMC, 4KB EEPROM
- 1x Debug Port, 2x Gigabit Ethernet, 4x USB 3.0, 1x MicroSD, 1x SIM Card Slot
- 2x RS485, 1x RS232, 1x RS485/RS232, 2x CAN, 4x DI, 4x DO
- Onboard WiFi/Bluetooth Module and Mini-PCIe Slot for 4G/5G Module
- Onboard M.2 (PCIe) M-Key 2280 Slot for SSD and Computing Power Card
- Supports HDMI and Mini DP Display, and Audio In/Out
- Supports Linux (Yocto), Debian
- Rugged and Fanless Enclosure Design
- Operating Temperature -40°C ~ 85°C
|
The MIC-B5760 is a rugged aluminum-alloy Industrial PC (IPC) Box suited for applications such as industrial automation, data acquisition, energy storage, intelligent transportation, security monitoring, medical devices, edge gateways, factory automation, PLC replacement and upgrade solutions, and automated testing.
Powered by the Rockchip RK3576J industrial-grade SoC (octa-core CPU up to 1.6GHz, 6 TOPS NPU, 3D GPU) with LPDDR5 memory, it delivers strong computing and AI performance. Storage and acceleration are expandable via an M.2 (PCIe) 2280 slot, with eMMC and UFS options. The device provides a rich set of peripheral interfaces: 2x Gigabit Ethernet, 4x USB 3.0, HDMI and Mini DP display outputs, and a 3.5mm audio input/output jack. Wireless connectivity includes WiFi/Bluetooth, as well as 4G/5G cellular via an onboard mini PCIe slot and Micro SIM card slot. Industrial interfaces include isolated 2x CAN FD, 2x RS485, 2x RS232, 1x RS485/RS232, and GPIOs.
MYIR offers comprehensive software support for Linux (Yocto) and Debian operating systems, including U-Boot, Linux kernel 6.1, driver source code, and development tools. Detailed documentation such as product manuals, user guides, and development references are also provided to facilitate secondary development and accelerate custom application deployment.

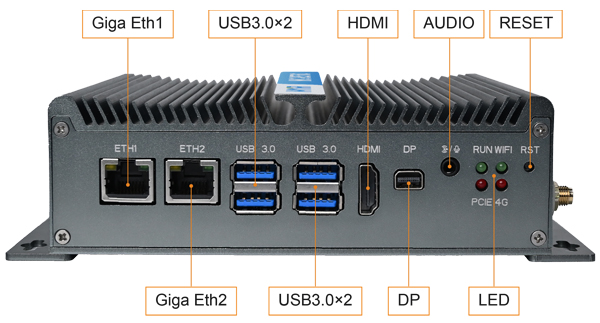

MIC-B5760 IPC Box Front View

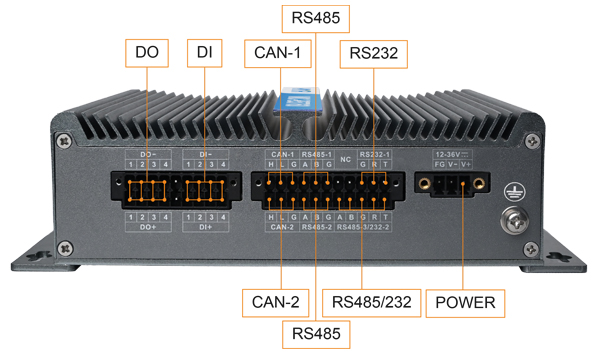

MIC-B5760 IPC Box Rear View

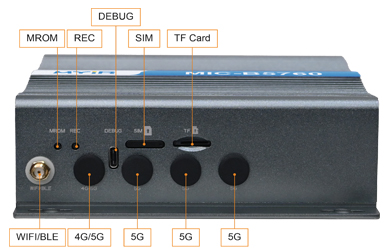

MIC-B5760 IPC Box Side View
Hardware Features
|
Features
|
Description
|
|
SoC
|
Rockchip RK3576J processor
- Octa-core Arm processor with 4x Cortex-A72 cores at 1.6 GHz, 4x Cortex-A53 cores at 1.4 GHz
- Arm Cortex-M0 MCU at 400MHz for user application
- Arm Mali-G52 MC3 GPU
- 6 TOPS NPU supports INT4/8/16/FP16/BF16/TF32
- Supports up to 8K@30fps or 4K@120fps video decoding (H.265/HEVC, VP9, AVS2, and AV1) and video encoder up to 4K@60fps video encoding (H.265 and H.264)
|
|
Memory
|
4GB LPDDR5 (8GB available as a customization option)
|
|
Storage
|
32GB eMMC (64GB or 128GB UFS available as customization options)
4KB EEPROM
1x Micro SD card slot
1x M.2 (PCIe) M-Key 2280 slot for SSD storage and AI computing card expansion
|
|
Communication
|
1x Type-C USB-UART Debug Interface
4x USB 3.0 Host Type-A Ports
2x 10/100/1000Mbps Gigabit Ethernet Interfaces
Onboard WiFi/BT Module (complies with IEEE 802.11a/b/g/n/ac standard, supports WiFi 6+BT V5.4) with 1x WiFi/BT antenna interface
1x Mini-PCIe Slot for 4G/5G Module, paired with 1x Micro SIM card slot
2x CAN FD with isolation
2x RS485 with isolation, 1x RS232 with isolation, 1x RS485/RS232 with isolation
4x DI with isolation, 4x DO with isolation
|
|
Multimedia
Interfaces
|
1x HDMI (supports up to 4K@120Hz resolution)
1x Mini DisplayPort (DP) (supports up to 4K@60Hz resolution)
1x 3.5mm Audio Jack (headphone output and microphone input)
|
|
Others
|
External Watchdog
Supercapacitor backup, supports 5-second power-off delay
1x External RTC (requires external 3.3V battery)
1x Onboard buzzer
4x LEDs (Power/System, WiFi, PCIe SSD, 4G/5G)
3x Buttons (Reset, RECOVERY, MASKROM)
|
|
Power supply
|
DC 12~36V/5A (via Phoenix connector)
|
|
Dimensions
|
150mm x 150mm x 49mm (without mounting bracket)
170mm x 150mm x 49mm (with mounting bracket)
|
|
Working Temp.
|
-40°C ~+85°C
|
Net Weight
|
840g
|
|
OS
|
Linux (Yocto), Debian
|
|
Installation
|
Desktop/Wall mounted (can be customized for Rail mounted)
|
Software Features
The MIC-B3576 offers supports for Linux and Debian operating systems and is equipped with comprehensive software packages. To assist clients in speeding up their projects, the kernel and numerous peripheral drivers are provided in source code format. Below is a brief overview of the key software feature:
|
Item
|
Features
|
Description
|
Source Code
|
|
Bootloader
|
Pre-loader
|
First Bootloader Program
|
NO
|
|
U-Boot
|
U-Boot 2017.09
|
YES
|
|
Kernel
|
Linux kernel
|
Customized based on Rockchip's official Linux kernel 6.1
|
YES
|
|
Drivers
|
EEPROM
|
EEPROM (BL24C32F) driver
|
YES
|
|
USB
|
USB driver
|
YES
|
|
Ethernet
|
Ethernet (YT8531SH) driver
|
YES
|
|
HDMI
|
HDMI driver
|
YES
|
|
DP
|
DP driver
|
YES
|
|
MIPI DSI
|
MIPI DSI driver
|
YES
|
|
Audio
|
ES8390 audio driver
|
YES
|
|
RTC
|
RX8025 driver
|
YES
|
|
GPIO
|
GPIO driver
|
YES
|
|
RS232
|
RS232 driver
|
YES
|
|
RS485
|
RS485 driver
|
YES
|
|
CAN
|
CAN driver
|
YES
|
|
WiFi
|
WiFi (BL-M8800DS7-80I) driver
|
YES
|
|
BT
|
Bluetooth (BL-M8800DS7-80I) driver
|
YES
|
|
File system
|
myir-image-mic-b5760-debian
|
Image built based on Debian system
|
YES
|
|
myir-image-mic-b5760-yocto
|
Linux image built with Yocto
|
YES
|
|
myir-image-mic-b5760-yocto-preempt-rt
|
Rt Linux image built with Yocto
|
YES
|
Relative Download and Links
You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.
|
1
|
MIC-B5760 IPC Box Overview
|
824 KB
|
|
Price and Ordering
|
Item
|
Packing List
|
Unit Price
|
Ordering
|
|
MIC-B5760 IPC Box
(Part No.: MIC-B5760-IB411000)
|
- One MIC-B5760 IPC Box
(4GB LPDDR5 + 32GB eMMC)
- One Quick Start Guide
- One WiFi/Bluetooth antenna
- One 3.5 mm pitch 18-pin Phoenix connector
- One 3.5 mm pitch 22-pin Phoenix connector
- One 3.81 mm pitch 3-pin Phoenix connector
|
USD339
|
|
|
