MYC-YRZFive CPU Module

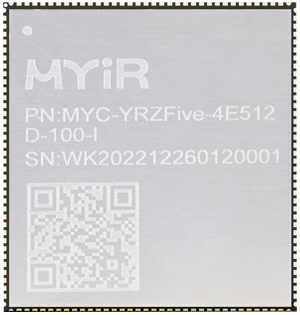

MYC-YRZFive CPU Module

- RENESAS RZ/Five Processor with 1.0GHz Single-core AX45MP RISC-V CPU Core
- 512MB DDR3L, 4GB eMMC Flash, 4KB EEPROM
- Power Management IC
- 1.0mm pitch 190-pin Stamp Hole Expansion Interface
- Ready-to-Run Linux 5.10 OS


MYIR is an authorized IDH partner of Renesas, welcome to use MYIR's Renesas series products!
We also offer custom design services, welcome your inquiry!

https://www.renesas.com/us/en/products/microcontrollers-microprocessors/rz-mpus/rz-partner-solutions/myir-som-rzf


Measuring only 37mm by 39mm, the MYC-YRZFive CPU Module is using a single-core AX45MP RISC-V CPU RZ/Five from Renesas. The processor is capable of running at up to 1.0GHz and has many interfaces such as Gbit-Ether, CAN, and USB 2.0, making it ideal for applications such as entry-class social infrastructure gateway control and industrial gateway control. The MYC-YRZFive is a system-on-module with integrated DDR3L, Nand Flash or eMMC, EEPROM and power management IC (PMIC) to provide processing capabilities through 1.0 mm pitch 222-pin stamp-hole (Castellated-Hole) expansion interface. The RZ/Five 13 x 13 mm package is pin compatible with Renesas RZ/G2UL (Type 1) processor so the MYC-YRZFive RISC-V module is pin-to-pin compatible with MYIRs MYC-YG2UL ARM based module.

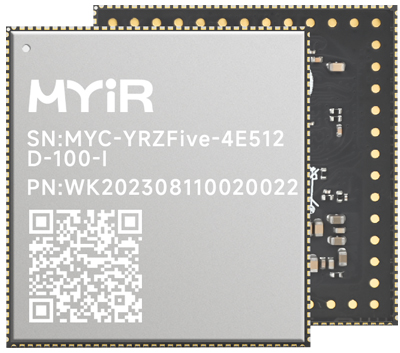

MYC-YRZFive CPU Module

The MYC-YRZFive CPU Module is capable of running Linux 5.10 and provided with streamlined core-image and full-featured image by Yocto. MYIR also offers the kernel and driver source codes, Linux gateway demo and compilation tools to enable users to start their development rapidly and easily.

The MYD-YRZFive Development Board is built around the MYC-YRZFive CPU Module. Its base board has brought out many peripheral interfaces including one RS232, one RS485, two Gigabit Ethernet, two USB 2.0 HOST, one USB 2.0 OTG, one CAN, one Micro SD card slot, one M.2 Socket for USB based 4G/5G LTE Module with two SIM card holders and one USB2.0 based WiFi module. The board has one GPIO/I2C/UART/SPI/CAN extension header which can connect to MYIRs MY-WIREDCOM RPI Module to further extend extra RS232, RS485 and CAN interfaces. It is a complete evaluation platform for using RZ/Five solutions.

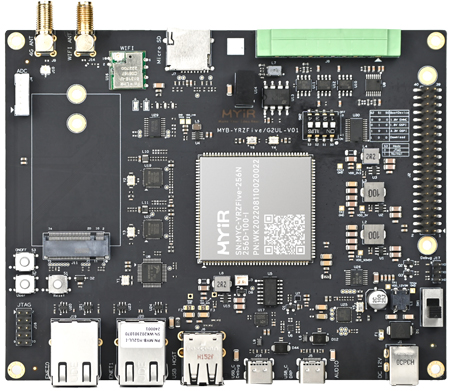

MYD-YRZFive Development Board (Top-view)

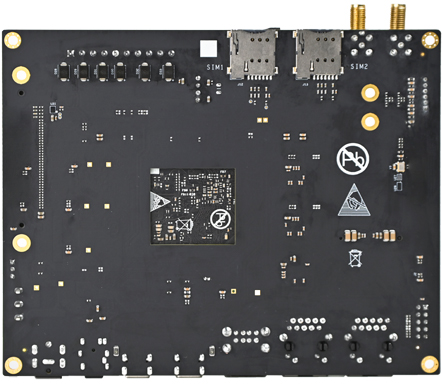

MYD-YRZFive Development Board (Bottom-view)

Features

Mechanical Parameters

  • Dimensions: 39mm x 37mm
  • PCB Layers: 10-layer design
  • Power supply: 5V/1A
  • Working temperature: -40~85 Celsius (industrial grade)

Processor

  • RENESAS RZ/Five processor (R9A07G043F01GBG#BC0)
    - 1.0 GHz Single-core RISC-V AX45MP
    - 16-bit DDR3L/DDR4-1600 (in line ECC)
    - 2 x Gigabit Ethernet

Memory

  • 512MB DDR3L

  • 4GB eMMC

  • 4KB EEPROM

Peripherals and Signals Routed to Pins

  • Power Management IC

  • 1.0mm pitch 190-pin stamp hole expansion interface
    - 2 x RGMII
    - 2 x USB 2.0
    - 5 x SCIF
    - 2 x SCI
    - 2 x CAN FD
    - 4 x I2C
    - 3 x SPI
    - 2 x ADC

    - Up to 82 GPIOs

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.


OS Support

  • Linux 5.10


Hardware Specification

The MYC-YRZFive CPU Module is using the 13 x 13mm, 0.5 mm ball pitch, 361pin BGA package, RZ/Five MPU (R9A07G043F01GBG#BC0) which belongs to the RENESAS RZ/FIVE product group and includes a 1.0GHz RISC-V CPU Core (AX45MP Single), 16-bit DDR3L/DDR4 interface. And it also has many interfaces such as Gbit-Ether, CAN, and USB 2.0, making it ideal for applications such as entry-class social infrastructure gateway control and industrial gateway control.

There are two package options. Please refer to the RZ/Five Overview for the differences in the functions supported by each.
13 x 13 mm Package Part Number: R9A07G043F01GBG#BC0
11 x 11 mm Package Part Number: R9A07G043F00GBG#BC0
The RZ/Five 13 x 13 mm package is also pin compatible with the RZ/G2UL (Type 1).

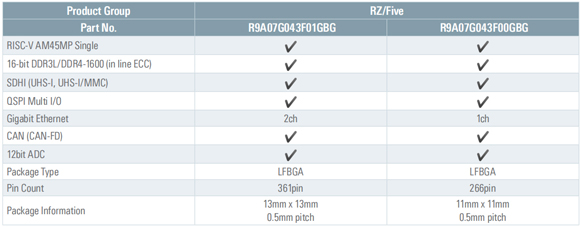

Production Information for RZ/Five Group

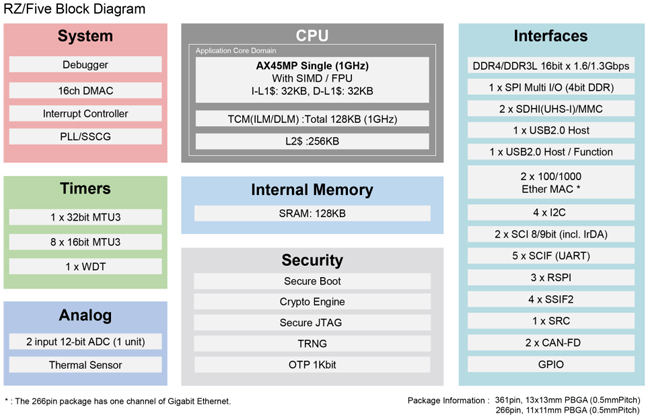

RZ/Five Processor Block Diagram


MYC-YG2UL CPU Module Function Block Diagram


MYD-YG2UL Development Board Function Block Diagram


MYC-YG2UL Dimensions Chart


MYD-YG2UL Dimensions Chart






Software Features

The MYC-YRZFive CPU Module supports Linux OS and comes with complete software package. The kernel and many peripheral drivers are available in source code to assist clients to expedite their development. The following are a summary of the software features:

Item

Feature

Description

Source code

Bootloader

trusted-firmware-a

fsbl boot

YES

U-boot

secondary boot program based on uboot_2021.10

YES

Linux kernel

Kernel version

Customized base on official kernel_5.10.83 version

YES

Drivers

PMIC

DA9062-53AM1 driver

YES

USB Host

USB Host driver

YES

USB OTG

USB OTG driver

YES

I2C

I2C driver

YES

SPI

SPI driver

YES

Ethernet

YT8531SH driver

YES

SDHI

eMMC/SD driver

YES

4G/5G

4G/5G module driver

YES

PWM

PWM driver

YES

ADC

ADC driver

YES

RTC

RTC driver

YES

GPIO

GPIO driver

YES

UART

RS485/RS232/TTL driver

YES

CAN

CAN driver

YES

WiFi

FG6131EUXX-00 driver

YES

File System

myir-image-core

image without GUI interface built with Yocto

YES

myir-image-full

full-featured image built with Yocto

YES

MYC-YRZFive Software Features





Relative Download and Links

You can download relative chip datasheet, products datasheet, user manual, software package from below. Detailed technical data available on request.


1 MYC-YRZFive CPU Module Overview 2.05 MB
2 MYD-YRZFive Development Board Overview


3 3D STEP file of MYC-YRZFive CPU Module


MYD-YRZFive Development Board (Top-view)

MYD-YRZFive Development Board (Bottom-view)


Price and Ordering


Item

Part No.

Packing List

Unit Price

Ordering

MYC-YRZFive
CPU Module

MYC-YRZFive-4E512D -100-I

One MYC-YG2UL Module

Coming soon

MYD-YRZFive
Development Board

MYD-YRZFive-4E512D -100-I

One MYD-YRZFive board
(including MYC-YRZFive CPU Module)

One USB to UART cable
One 12V/2A Power adapter
One DC power jack adapter
One Quick Start Guide

Coming soon

MY-WIREDCOM

RPI Module

MY-WIREDCOM
RPI Mofule for extension

of RS232/RS485/CAN

USD25

Note:

1. One MYD-YRZFive Development Board includes one CPU module MYC-YRZFive mounted on the base board. If you need more CPU module, you can order extra ones.

2. Discount is available for mass orders. Please contact MYIR for inquiries.

3. We accept custom design based on the MYD-YRZFive, whether reducing, adding or modifying the existing hardware according to customer’s requirement.
