MYIR Launched Six-core ARM-A55 D9-Pro based SoM for Industrial Applications


2023-8-28   16:47:30     Click: 621




Shenzhen, China – August 28, 2023 – MYIR has launched a new ARM SoM MYC-JD9360 CPU Module based on the smart industrial processor D9-Pro (D9360) from SemiDrive, equipped with six high-performance Arm Cortex-A55 cores (up to 1.6GHz) and one dual-core lockstep high real-time and high-reliability Cortex R5 core (800MHz). In addition to the D9-Pro MPU, the MYC-JD9360 CPU Module has integrated 2GB LPDDR4, 16GB eMMC, 16MB QSPI Flash, 256Kbit EEPROM, Watchdog timer chip and Isolated power supply. It carries out a variety of peripherals and IO signals through the 0.5 mm pitch 314-pin gold-finger-edge-card expansion interface including TSN-enabled Gigabit Ethernet, USB3.0, PCIe 3.0, SDIO, UART, I2C,SPI, ADC, CAN FD, MIPI-DSI, MIPI-CSI, LVDS, etc. It also takes advantages of the D9-Pro processor to support high-performance 3D graphics processing, high-efficiency AI accelerator and high-definition visual processing. This enables the MYC-JD9360 module to be seamlessly connected and applied to various industrial applications at an affordable cost. Typical applications are industrial robots, engineering machinery T-BOX, intelligent cockpits, in-vehicle entertainment, intelligent medical equipment and so on.


MYC-JD9360 CPU Module

The MYC-JD9360 CPU Module is measuring 82mm by 45mm. It is capable of running multiple different operating systems including Linux, Ubuntu and Android OS. The module is provided with plenty of software resources including but are not limited to, bootloader, kernel, drivers, images and relative development tools, together with detailed user manual and documentations to help customer start their development rapidly.


MYC-JD9360 CPU Module Block Diagram

Features of MYC-JD9360 CPU Module

- Dimensions: 82mm x 45mm

- PCB Layers: 8-layer design

- Power supply: 5V/5A

- Working temperature: -40~85 Celsius (industrial grade)

- SemiDrive D9-Pro Processor (D9360)

* 6 x Cortex-A55@1.6GHz
* 1 x Cortex-R5
* IMG PowerVR 9XM GPU @100GFLOPS
* VPU H.264 Video Encoder/Decoder, H.265/VP8/VP9 Video Decoder
* NPU@0.8Tops (SemiDrive SlimAI Engine)

- 2GB LPDDR4

- 16GB eMMC

- 256Kbit EEPROM

- 16MB QSPI Nor Flash

- 0.5mm pitch 314-pin MXM 3.0 Gold-finger-edge-card Connector

* 2 x Gigabit Ethernet

* 2 x PCIe3.0

* 2 x USB3.0 (DRD)

* 2 x SDIO

* 11 x UART (supports up to 16 x UART)

* 2 x CAN-FD (supports up to 4 x CAN-FD)

* 4 x I2C (supports up to 12 x I2C)

* 2 x SPI (supports up to 8 x SPI)

* 4 x 12bit ADC

* 1 x MIPI-DSI

* 2 x LVDS

* 1 x Parallel CSI

* 1 x MIPI CSI

* 4 x Single-channel I2S/TDM

* 2 x Multi-channel I2S

* 1 x JTAG

* Up to 135 x GPIOs

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.

- Linux

- Ubuntu

- Android (coming soon)


The MYD-JD9360 Development Board is a starter kit for evaluating the MYC-JD9360 CPU Module. It has a versatile base board to facilitate the expansion from the MYC-JD9360 through the 314-pin expansion interface, a rich set of peripherals and interfaces have been brought out such as two RS485, two RS232, two CAN, two Gigabit Ethernet, two USB Host, one DRD, one USB based 5G/4G module interface and one WiFi/BT module. It also has advanced multi-media capabilities to support dual LVDS display, audio and camera as well as HDMI display support via MIPI-DSI. The MY-CAM003M MIPI Camera Module and MY-LVDS070C LCD Module can be used as options for the MYD-JD9360 board which allows customers to acquire better development experience. It is an excellent reference design for using D9-Pro solutions.

MYD-JD9360 Development Board (top-view)


MYD-JD9360 Development Board (bottom-view)

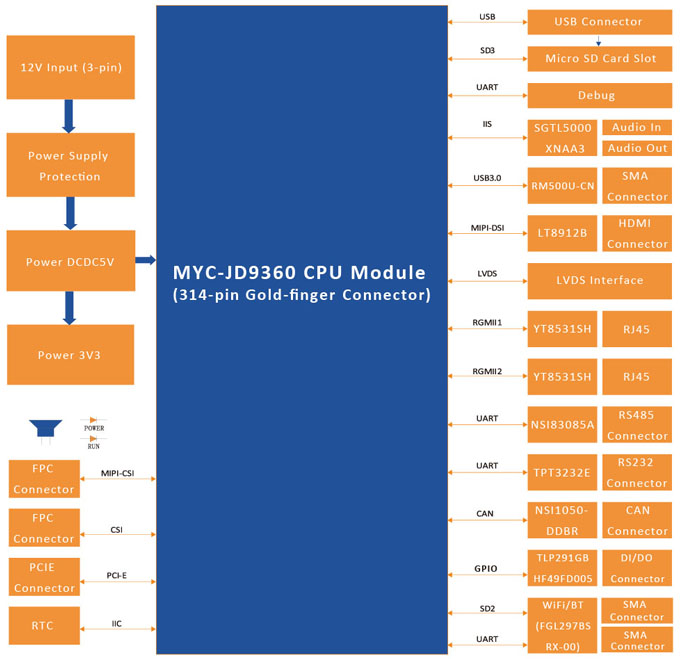

MYD-JD9360 Development Board Block Diagram


The MYC-JD9360 CPU Module is pricing at only $65/pc. Discount is to be offered for volume quantities. MYIR also provides OEM/ODMservices to help customers accelerate their time to market and save cost.
