MYIR Launched ARM SoM based on New-generation TI AM62x Efficient Processors


2023-8-15   11:15:14     Click: 850




Shenzhen, China
– August 15, 2023MYIR has launched a new ARM SoM MYC-YM62X CPU Module based on AM62x (AM625/AM623), the latest Sitara processor from TI, equipped with quad/dual/single Arm Cortex-A53 core (up to 1.4GHz) and single Cortex-M4F core (400MHz). In addition to the AM62x MPU, the MYC-YM62X CPU Module has integrated 1GB/2GB DDR4, 8GB eMMC, 32Kbit EEPROM and PMIC. It carries out a variety of peripheral and IO signals through the 1.0 mm pitch 222-pin Castellated-Hole expansion interface including dual TSN-enabled Gigabit Ethernet ports, USB, MMC/SD, Camera interface, OSPI, CAN-FD and GPMC. It also takes advantages of the AM62x processor to support dual-display and 3D GPU (only for AM625). This makes it particularly suitable for Human-machine Interaction (HMI), Internet of Thinks (IoT) and Gateway applications.

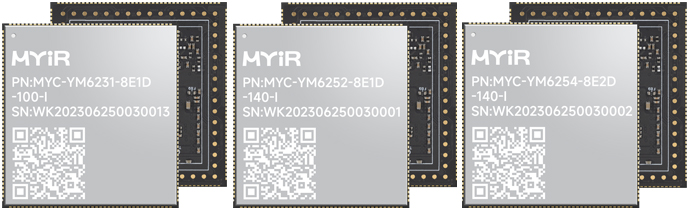

MYC-YM62X CPU Module (MYC-YM6231 / MYC-YM6252 / MYC-YM6254)


The
MYC-YM62X CPU Module measures only 43mm by 45mm. It is capable of running Linux and provided with software resources including kernel and driver source code, together with detailed user manual and documents to help customer start their development rapidly.

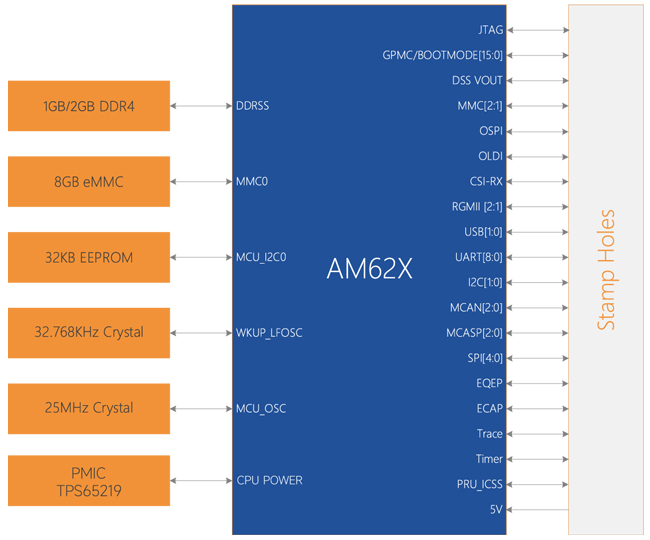

MYC-YM62X CPU Module Function Block Diagram


Features of MYC-YM62X CPU Module

- Dimensions: 43mm x 45mm

- PCB Layers: 10-layer design

- Power supply: 5V/1A

- Working temperature: -40~85 Celsius (industrial grade)

- TI Sitara AM62x Processor (AM6254/AM6252/AM6231)

* TI AM6254: 4*Cortex-A53@1.4GHz + Cortex-M4F@400MHz (AM6254ATCGGAALW)

* TI AM6252: 2*Cortex-A53@1.4GHz + Cortex-M4F@400MHz (AM6252ATCGGAALW)

* TI AM6231: 1*Cortex-A53@1.0GHz + Cortex-M4F@400MHz (AM6231ASGGGAALW)

* Two PRU-SS running up to 333MHz

* 3D GPU graphics accelerator (only for AM625 processors)1GB/2GB DDR4

- 1GB/2GB DDR4

- 8GB eMMC

- 32KB EEPROM

- 1.0mm pitch 222-pin stamp hole expansion interface

* 2 x RGMII

* 2 x USB2.0

* 9 x URAT

* CAN FD

* I2C

* SPI

* GPMC

* LVDS

* RGB

* MIPI CSI

* MCASP

* JTAG

* Up to 143 x GPIOs

Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file.

- Linux OS


The MYD-YM62X Development Board is a demo board for evaluating the MYC-YM62X CPU Module. It has a versatile base board to facilitate the expansion from the MYC-YM62X through the 222-pin expansion interface, a rich set of peripherals and interfaces have been brought out such as two RS485, two CAN, two USB 2.0 HOST and one USB 2.0 OTG, two Gigabit Ethernet, one M.2 Socket for USB based 4G/5G LTE Module with two SIM card holders, one Micro SD card slot, one SDIO based WIFI/BT module, one HDMI display interface, one dual-channel LVDS display interface, two single-channel LVDS interfaces, one MIPI CSI camera interface and one audio input/output interface, as well as one 30-pin extension header for GPMC. The MY-CAM003M MIPI Camera Module and MY-LVDS070C LCD Module can be used as options for the MYD-YM62X board which allows customers to acquire better development experience.

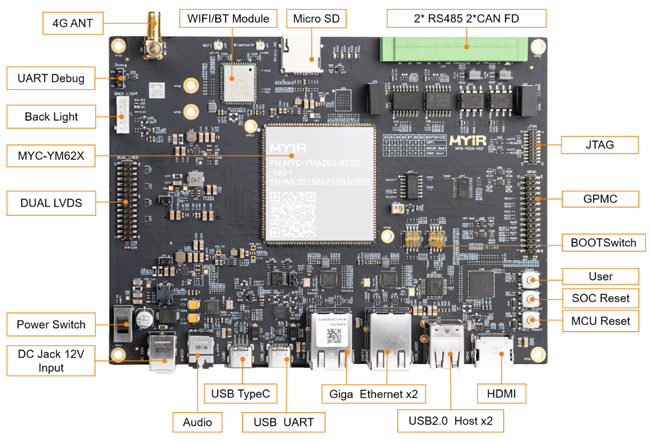

MYD-YM62X Development Board Top-view

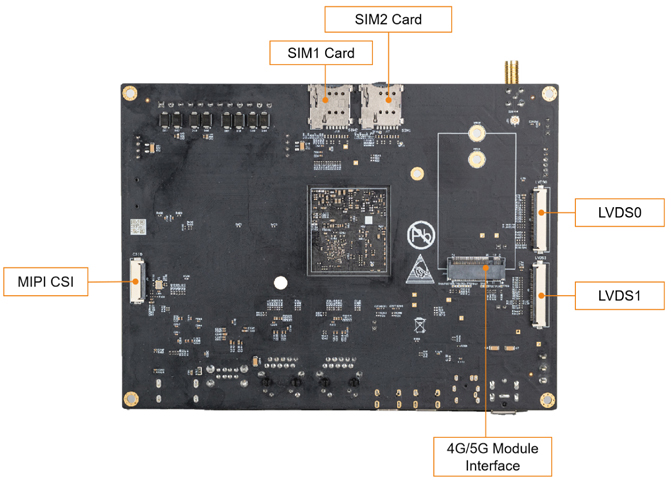

MYD-YM62X Development Board Bottom-view

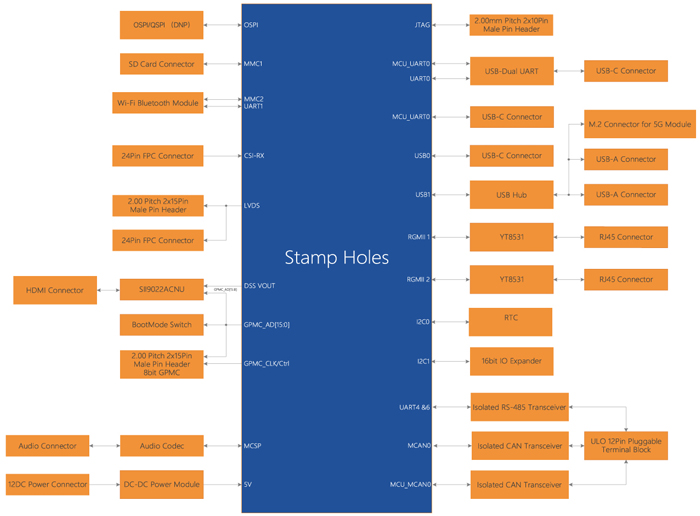

MYD-YM62X Development Board Function Block Diagram


The
MYC-YM62X CPU Module is provided with three standard configurations at cost-effective prices. The part MYC-YM6231-8E1D-100-I is pricing at only $29/pc. Dis count is to be offered for volume quantities.


Part No.

Processor

DDR4

eMMC

Unit Price

MYC-YM6254-8E2D-140-I

AM6254ATCGGAALW@1.4GHz

2GB

8GB

$43

MYC-YM6252-8E1D-140-I

AM6252ATCGGAALW@1.4GHz

1GB

8GB

$33

MYC-YM6231-8E1D-100-I

AM6231ASGGGAALW@1.0GHz

1GB

8GB

$29


MYIR also provides OEM/ODM services to help customers accelerate their time to market and save cost.


More information about above new products can be found at:

https://www.myirtech.com/list.asp?id=730
