Shenzhen, China – May 12, 2025 – MYIR has introduced the MY-EVC700S-V2 IPC Box, which uses Allwinner’s T113-i MPU to provide a cost-effective solution for industrial gateway applications with stringent operating conditions, stable reliability, and isolation protection performance.
The MY-EVC700S-V2 IPC BOX is housed within a ruggedized metal enclosure. Its high-performance motherboard integrates MYIR’s MYC-YT113i System-on-Module, featuring a dual-core Arm Cortex-A7 processor, 512MB DDR3 memory, and 4GB eMMC flash storage. The system offers comprehensive industrial connectivity through multiple interfaces:: 2x RS232, 2x RS485, 2x USB 2.0 ports, 1x 10/100 Mbps Ethernet, 2x CAN bus and 1x microSD card slot. Enhanced display capabilities include LVDS video output and audio interface support. Wireless connectivity is enabled through an integrated WiFi/Bluetooth module and a USB-based 4G LTE module installed via Mini-PCIe interface. Pre-installed with Linux operating system, the device is supported by MYIR's complete BSP package containing full source code for u-boot, a customized kernel, and hardware drivers. Additional development resources include associated development tools, and detailed technical documentation to facilitate application customization and system integration.
Highlights:
- Integrated Industrial Gateway Solution Based on Allwinner T113-i
- Up to 1.2GHz Dual-core ARM Cortex-A7 MPU with Single-core HiFi4 DSP
- 512MB DDR3, 4GB eMMC, 32KB EEPROM

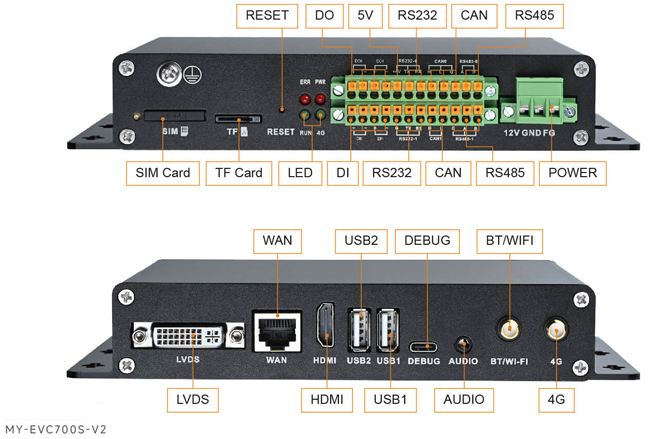

- Debug UART, 2x RS232, 2xRS485, 2x USB Host, 2x CAN, TF Card Slot, Digital Input/Output
- 1x 10/100Mbps Ethernet, WiFi/Bluetooth, 4G LTE Module (Quectel EC200MCNLF-I03-MN0CA)
- LVDS Display Interface, Audio
- Supports Linux OS
- Supports Working Temperature Ranging from -40°C to 85°C
- CE Certificated, Long-term Availability
The MY-EVC700S-V2 is offered at an affordable price, with a cost of only $129, yet it delivers powerful performance to help shorten your product time to market.
More information about the device can be found at:
https://myirtech.com/list.asp?id=818
https://en.myir.cn/MY-EVC700S-V2/159.html (new website)
|
