Shenzhen, China – April 28, 2025 – MYIR has expanded its Rockchip series System-On-Module (SOM) family with the release of two new modules, the MYC-YR3562 and MYC-YR3506. Based on Rockchip's RK3562 and RK3506 processors, respectively, these SOMs deliver high performance and flexibility for a wide range of applications.
The MYC-YR3506 is a cost-effective, power-efficient SOM designed for entry-level multimedia and IoT applications. It features the RK3506 SoC with a triple-core ARM Cortex-A7 CPU running at up to 1.5GHz. Equipped with a 2D graphic engine and support for display interfaces such as RGB and MIPI-DSI, it is compatible with a range of screens. Basic connectivity options include dual 10/100Mbps Ethernet, dual USB 2.0, dual CAN, and six UART interfaces. Ideal for energy-efficient, battery-powered devices, the MYC-YR3506 is commonly used in low-cost smart displays, IoT devices, and simple multimedia systems.

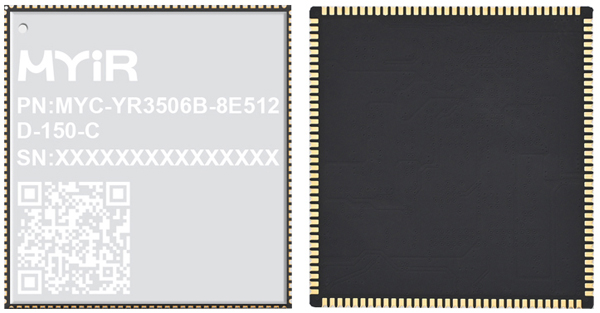

MYC-YR3506 Top-view and Bottom-view
The MYC-YR3562 is an advanced SOM designed for mid-range applications, delivering enhanced performance and versatility. It features the RK3562 processor with a quad-core ARM Cortex-A53 CPU, a 3D GPU, and a dedicated NPU supporting AI and machine learning tasks with up to 1 TOPS computational power. The module provides comprehensive connectivity options, including Gigabit Ethernet, USB 3.0, dual CAN, and up to 10 UART ports. Equipped with versatile display interfaces (RGB, LVDS, MIPI-DSI) and camera inputs (MIPI-CSI), it also supports 4K video decoding and 1080p encoding. This cost-efficient solution is ideal for industrial automation, IoT gateways, edge computing, and related technology-driven applications.

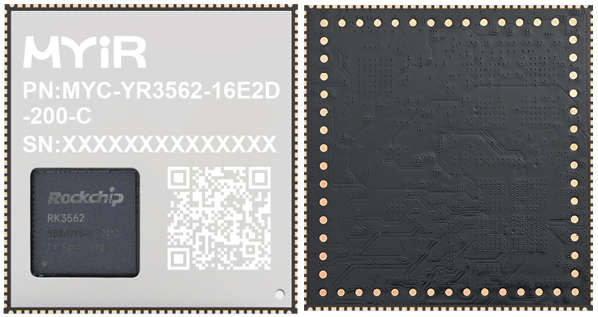

MYC-YR3562 Top-view and Bottom-view
Both SOMs run the Linux operating system. Tailored for different market segments, the MYC-YR3506 focuses on lightweight, cost-effective solutions, while the MYC-YR3562 targets more demanding applications with higher performance and advanced features. Users can select MYIR's Rockchip processor-based SOMs according to their specific requirements.
|
Key Features
|
MYC-YR3562
|
MYC-YR3506
|
|
Series
|
Rockchip
|
Rockchip
|
|
CPU Type
|
RK3562 / RK3562J
|
RK3506B / RK3506J
|
|
Application Cores
|
Cortex-A53
|
Cortex-A7
|
|
Number of Cores
|
Quad-core
|
Triple-core
|
|
Frequency
|
RK3562: 4*Cortex-A53@1.4GHz, RK3562J: 4*Cortex-A53@1.2GHz/1.8GHz
|
RK3506B: 3x Cortex-A7@1.5GHz, RK3506J: 3x Cortex-A7@1.2GHz
|
|
OS
|
Linux 6.1
|
Linux 6.1
|
|
Interface Type
|
164-pin Castellated-Hole and 58-pin LGA
|
140-pin Castellated-Hole
|
|
Co-processor Cores
|
None
|
Cortex-M0
|
|
GPU
|
Mali-G52-2EE
|
-
|
|
VPU
|
Decode:4K@30FPS H.265, 1080P@60FPS H.264 Encoder:1080P@60FPS H.264
|
-
|
|
NPU
|
1TOPS
|
-
|
|
RAM
|
1GB/2GB LPDDR4
|
256MB/512MB LPDDR3L
|
|
ROM
|
8GB/16GB eMMC
|
256MB Nand Flash/8GB eMMC
|
|
DISPLAY
|
24-bit RGB, MIPI-DSI, LVDS
|
1x 24-bit RGB, 1x 2Lane MIPI DSI
|
|
CAMERA
|
2x MIPI CSI
|
2x MIPI CSI
|
|
AUDIO
|
3x SAI, 1x SPDIF, 1x 8-ch PDM
|
2x SAI TX 1Lane/RX 1Lane, 1x SAI TX 1Lane/RX 4Lane, 1x SAI TX 4Lane/RX 1Lane, 1x SPDIF TX, 1x SPDIF RX, 1x 8-ch PDM RX, 1x Audio ADC 1ch, 1x Audio ADC 2ch, 2x ASRC 4ch
|
|
ETHERNET
|
1x RGMII, 1x RMII
|
2x RMII
|
|
USB
|
1x USB 3.0/2.0 OTG, 1x USB 2.0 Host
|
2x USB2.0 OTG
|
|
PCIE
|
PCIe2.1
|
-
|
|
UART
|
10x UART
|
6x UART
|
|
CAN
|
2x CAN 2.0B
|
2x CAN
|
|
SD/SDIO
|
2x SDIO 3.0
|
-
|
|
SPI
|
3x SPI
|
3x SPI
|
|
I2C
|
5x I2C
|
3x I2C
|
|
PWM
|
16x PWM
|
12x PWM
|
|
ADC
|
2x SARACD
|
1x SARADC
|
|
OPERATING TEMPERATURE
|
0℃ ~ +70℃ (with RK3562 CPU)
or -40℃ ~ +85℃ (with RK3562J CPU)
|
0℃ ~ +70℃ (with RK3506B CPU)
or -40℃ ~ +85℃ (with RK3506J CPU)
|
|
DIMENSIONS
|
43mm x 45mm
|
37mm x 39mm
|
MYIR offers dedicated development boards, MYD-YR3506 and MYD-YR3562, designed for evaluating their corresponding SOMs, along with comprehensive documentation and software packages to empower users to kickstart their projects efficiently. MYIR delivers the MY-ICEB001 expansion board for the RK3562J-powered MYD-YR3562. This robust enriches connectivity with three USB 2.0 ports, one RS232 port, two RS485 ports, two CAN interfaces, and an M.2 socket supporting USB-based 4G/5G LTE Modules with a SIM card holder. These enhancements dramatically expand the board’s versatility, providing users with the flexibility to tailor the solution to their unique project needs.

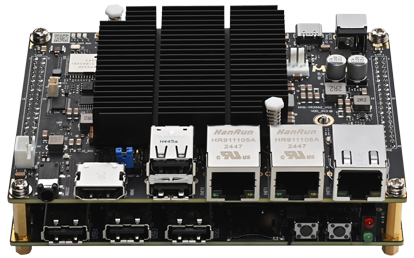

MYD-YR3562 Development Board

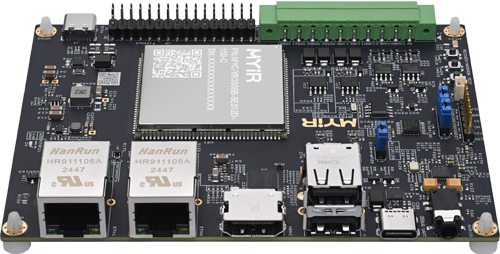

MYD-YR3506 Development Board
MYD-YR3562 Development Board (RK3562J) with MY-ICEB001 Expansion Board
MYIR provides a range of flexible configurations for its SOMs, tailored to diverse memory and storage demands. The entry-level model MYC-YR3506B-256N256D-150-C shines as an exceptional value, priced at just $12.80 per unit, with bulk discounts available to ensure cost-effective procurement. For specialized requirements, we offer tailored customization solutions to precisely match your project scale and technical specifications.
More information about the two SOMs can be found at:
https://en.myir.cn/RK3562/151.html
https://en.myir.cn/RK3506/158.html
|
