With the continuous trend of automation from semi-automatic to fully automatic, the whole industry’s requirements for the "brain" of automation - control system are increasingly high, not only need to have easy-to-use operating system, but also to achieve independent operation in the production process, adaptive control, etc.
When the mechanical motion control system is put into practical use, the control system of automatic production will be continuously optimized and improved with the demand, and it also promotes the progress and development of the control system hardware and software. The first is the precision control of the multi-axis motion of the control system, which requires a large number of real-time data analysis and calculation to ensure the operation of high precision, high response, stability and reliability. Then the main frequency of the CPU needs to have strong enough performance, processing power and memory capacities to fully meet the needs of the computing. Secondly, the control system can be separated from the extra configuration of the PC host. The integrated control system is more convenient to use, and it also saves space and runs independently. In addition, the industrial screen display of the control system is easy to learn and use.

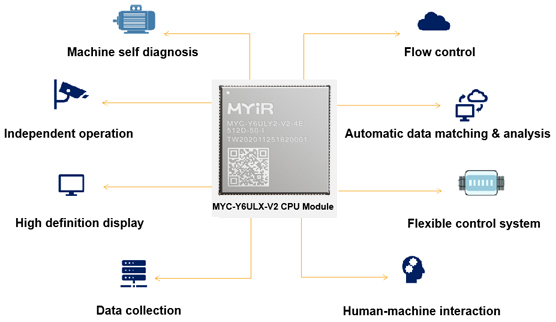

The motion control system based on the MYC-Y6ULX-V2 CPU Module can be designed with high-definition display to achieve better human-machine interaction and flexible control system; and use analog signal, USB, IO and other interfaces for accurate acquisition and efficient transmission to make the system realize extremely high accuracy and stability in operating.
Common Application Scenarios
- Automatic milling machine: parts automatic milling processing, etc.
- Automatic polishing, grinding machine: grinding and polishing of diamond jewelry, glass products, etc.
- Automatic cutting machine: PCB board cutting, stone cutting, multi-axis cutting, glass cutting, etc.
- Automatic dot/gluing machine, automatic spraying machine: electronic component packaging, diode dispensing/sealing injection, wafer packaging, etc.
- Automatic injection molding machine: discharge flow control, automatic product demoulding, etc.
MYIR provides a solution for the application of motion control system based on MYC-Y6ULX-V2 CPU Module according to customer’s requirements.
1. The MYC-Y6ULX-V2 CPU Module is using the high-performance and low-cost NXP i.MX 6UL/6ULL ARM Cortex-A7 CPU running up to 900MHz, with professional and reliable hardware circuit design.
2. It has sufficient memory and storage capacities with 512MB DDR3 and 4GB eMMC flash (other RAM and Flash configurations are optional or can be customized).
3. It supports parallel LCD display which is easy to operate and can meet the requirements of high-speed computing with high resolution, high response, and high reliability during motion control.

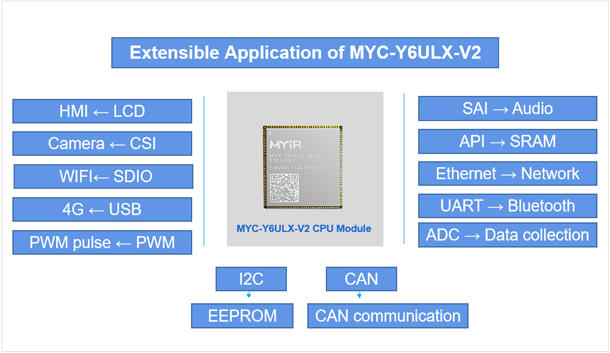

4. It is provided with rich peripheral interfaces including 2 x CAN, 8 x Serial ports, 8 x ADC, 4 x I2C and more others to allow flexible development according to customers’ demand and enable automatic and intelligent applications for the motion control system.

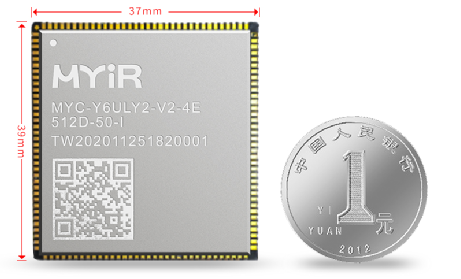

The size of the MYC-Y6ULX-V2 CPU Module is only 37mm*39mm, and the circuit design is highly integrated. The 140-pin expansion interface has brought out rich peripheral resources, which is convenient for customers to develop their applications flexibly. The MYC-Y6ULX-V2 module adopts high-density stamp hole package to allow fast data transmission and stable performance, with small form factor, it is also beneficial to save more space and cost. The MYC-Y6ULX-V2 CPU module has undergone a series of software and hardware tests, including aging test, critical signal quality test, high-and-low temperature test and software stress test to ensure that the module has reliable performance and can work normally in harsh industrial environments.
Features of MYC-Y6ULX-V2 CPU Module
- 2 x 100Mbps Ethernet: supports SSH, TCP/IP, and IEEE 1588 protocol.
- Serial port: it provides up to 8 serial ports, which can be connected to MCU, Bluetooth chip and other devices. It can also be extended to RS232 or RS485 through chips for long-distance transmission.
- I2C: 4-way I2C bus can be extended, maximum speed up to 400 Kbps, I2C uses two lines for data communication between the master controller and the slave machine; it can also be connected to capacitive touch screen, sound card chip and camera module.
- CAN: 2-way CAN bus can be extended and support CAN 2.0B.
- SPI: 4-way SPI can be extended, and the data rate is up to 52 Mbit/s. It can be configured to support master/slave mode, and one bus can connect multiple slave devices.
- ADC: 8-channel ADC and 12-bit universal analog-to-digital converter are provided. The ADC is used inside the sensor to process the original analog signal and output the digital signal to the user.
- PWM: 8-channel PWM are provided, pulse width modulator can be used for display brightness adjustment and motor speed regulation.
- I2S: 3-channel I2S are provided, which can be connected to the sound card chip to realize sound input and output.
- GPIO: up to 97 channels of GPIO are provided, which can be used freely by customers.

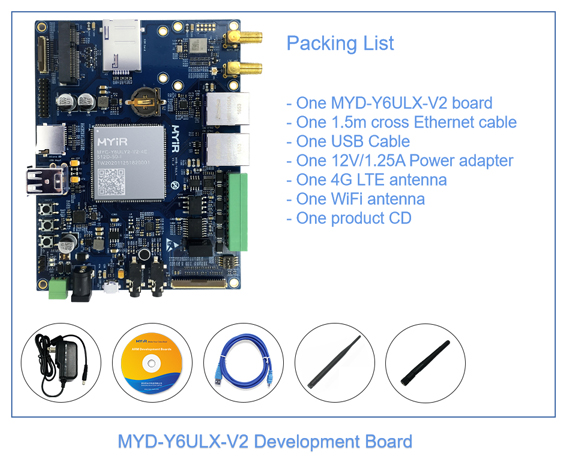

MYIR also provides MYD-Y6ULX-V2 development board for evaluation and prototype purpose.
Please contact MYIR if you are interested in the solution.
|
